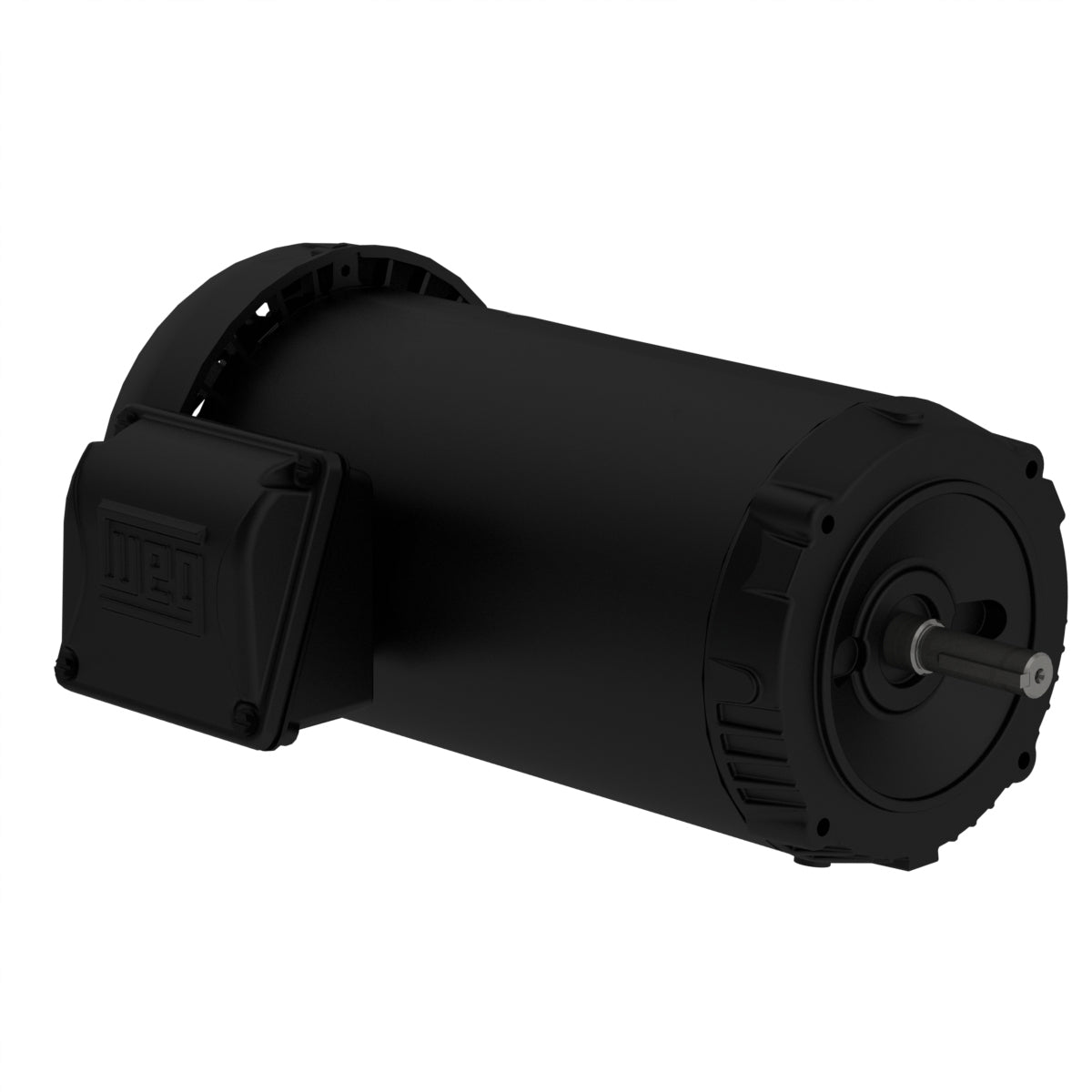

Weg Electric .7512ES3H56CFL-S, 3/4 Hp, 1200 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Premium Efficiency.

.7512ES3H56CFL-S, 3/4 Hp, 1200 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1155 rpm
Slip 3.75 %
Rated voltage 575 V
Rated current 1.07 A
L. R. Amperes 6.22 A
LRC 5.8x(Code K)
No load current 0.777 A
Rated torque 3.41 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1331 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
