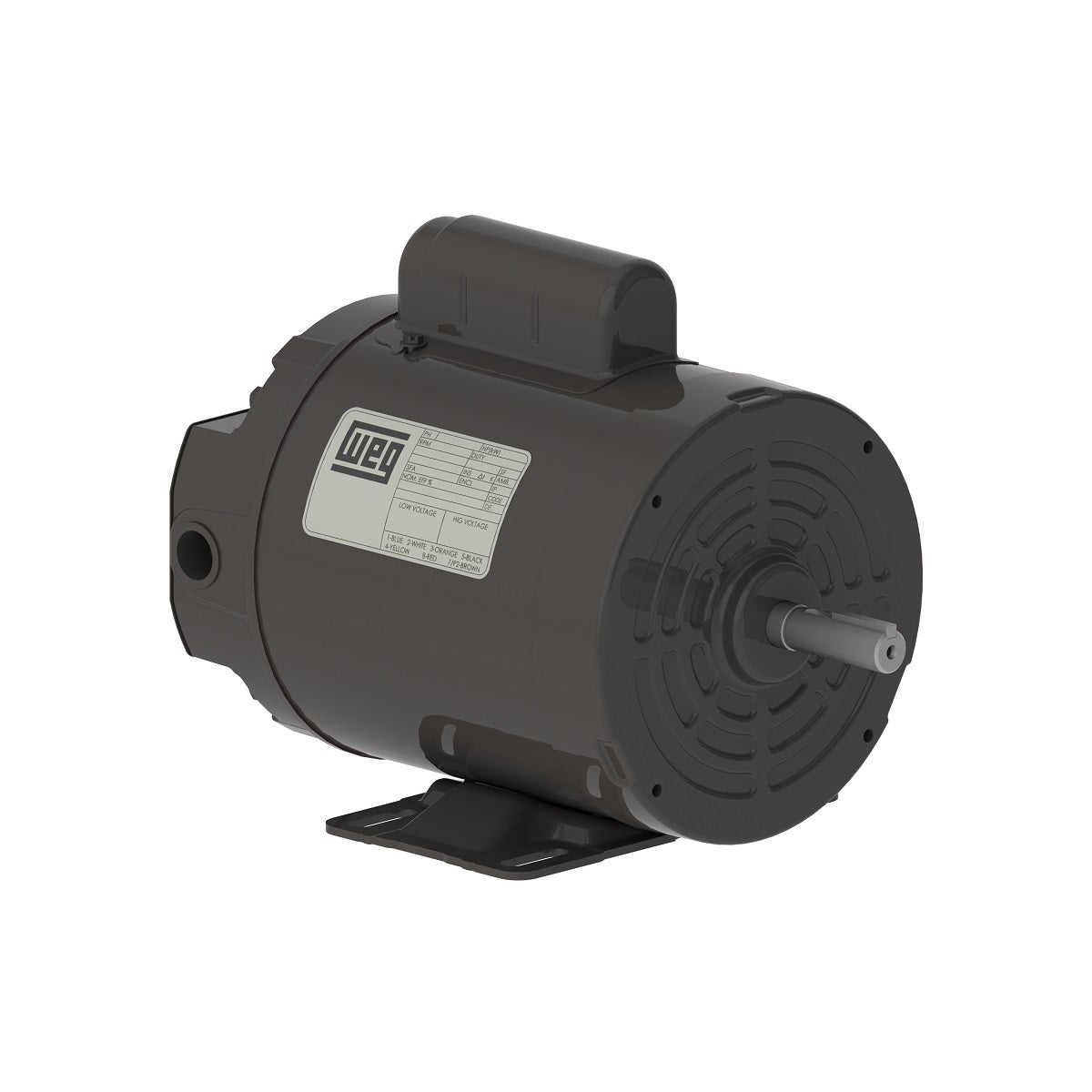

Weg Electric .7518ES1BPFB56, 3/4 Hp, 1800 Rpm, B56 FR, 115/230 Vac, TEAO, 1 PH, Foot-mounted, Poultry Fan Start Capacitor.

.7518ES1BPFB56, 3/4 Hp, 1800 Rpm, B56 FR, 115/230 Vac, TEAO, 1 PH, Foot-mounted, Poultry Fan Start Capacitor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/230 V
Number of poles 4
Degree of Protection IP44
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC410 - TEAO

Frame B56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 115/230 V
Rated current 11.2/5.60 A
L. R. Amperes 69.4/34.7 A
LRC 6.2x(Code M)
No load current 9.00/4.50 A
Rated torque 2.24 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0975 sq.ft.lb
Insulation Class B
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP44
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
