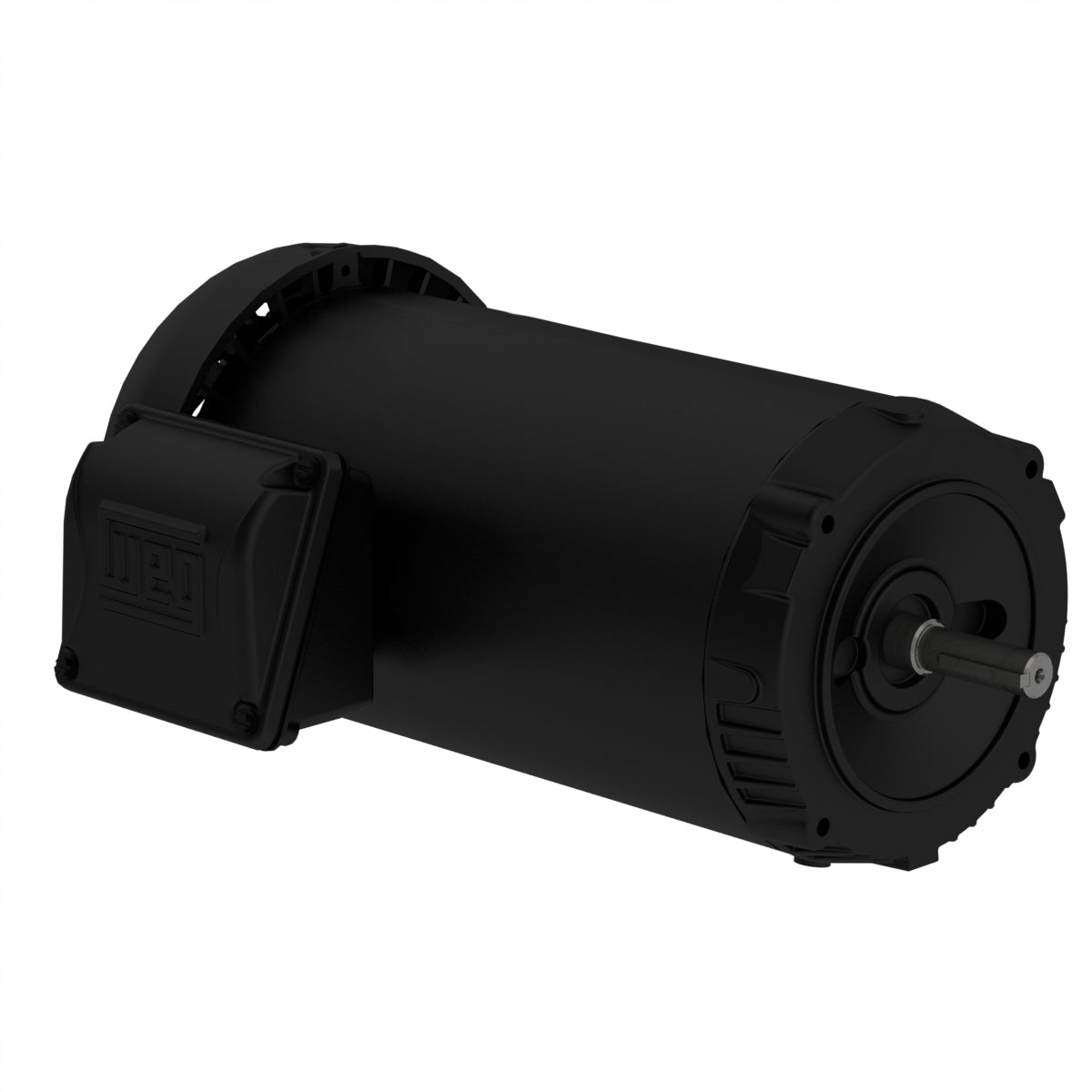

Weg Electric .7518ES3E56CFL-S, 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

.7518ES3E56CFL-S, 3/4 Hp, 1800 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 2.70-2.44/1.22 A
L. R. Amperes 18.6-16.8/8.42 A
LRC 6.9x(Code K)
No load current 1.55-1.80/0.900 A
Rated torque 2.24 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0648 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
