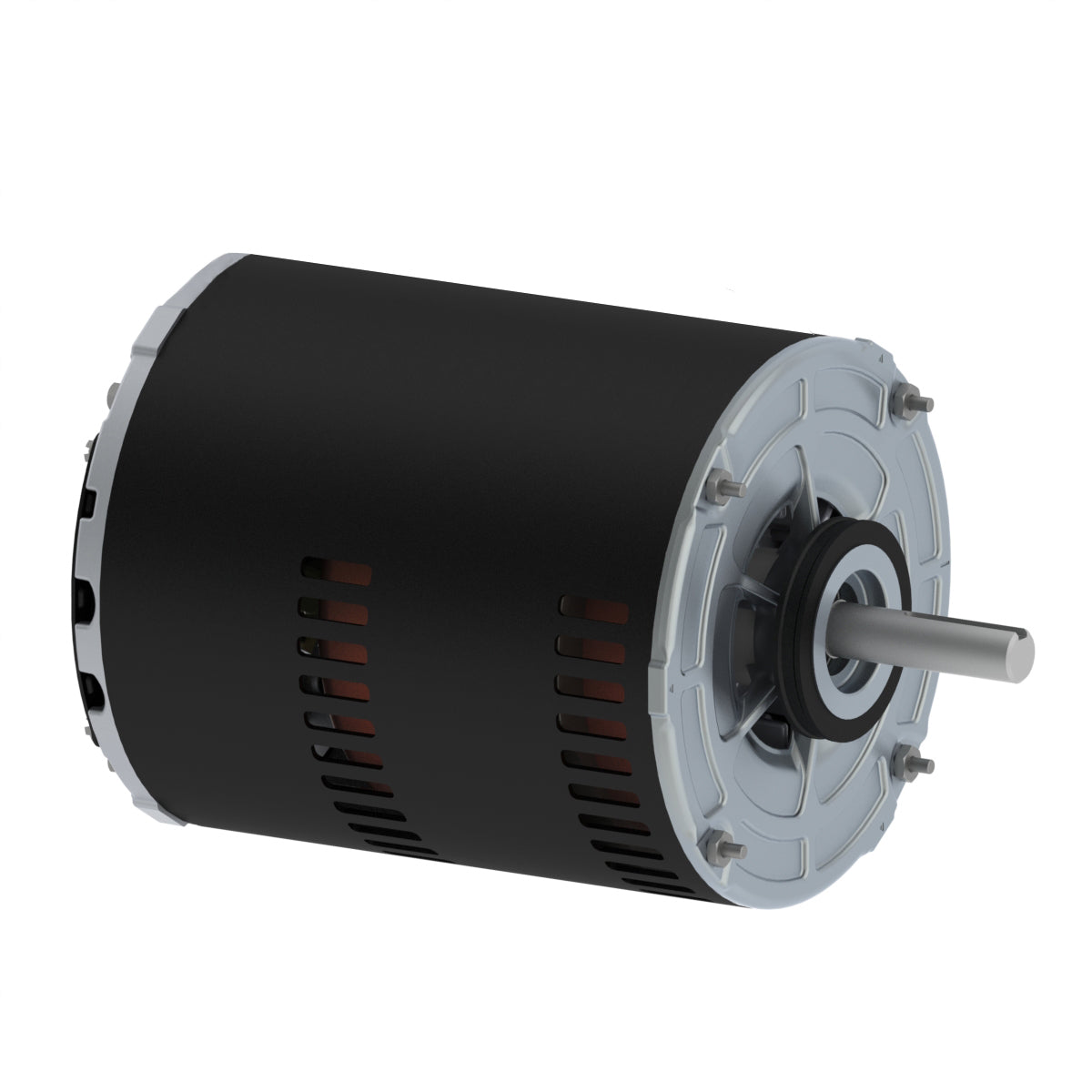

Weg Electric .7518OS1AEC56, 3/4 Hp, 1800 Rpm, 115 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

.7518OS1AEC56, 3/4 Hp, 1800 Rpm, 115 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Winding thermal protection Thermostat - 2 wires 1 per phase 130°C
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
