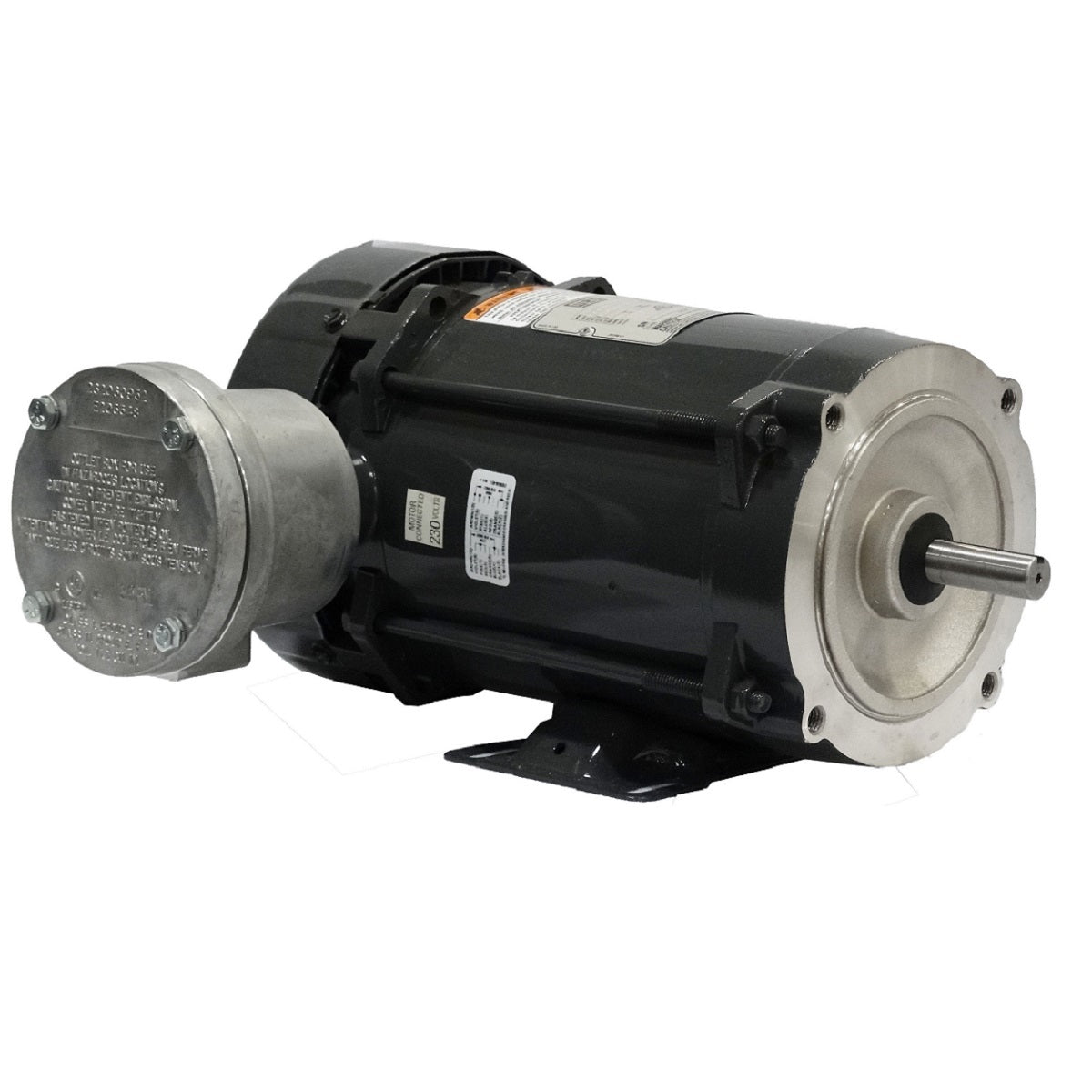

Weg Electric .7518XS1B56C, 3/4 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

.7518XS1B56C, 3/4 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 0.75 HP
Enclosure TEFC
Number of poles 04P
Mounting Foot-mounted
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 115/208-230 V
Synchronous speed 1800 rpm
