Industrial Motors

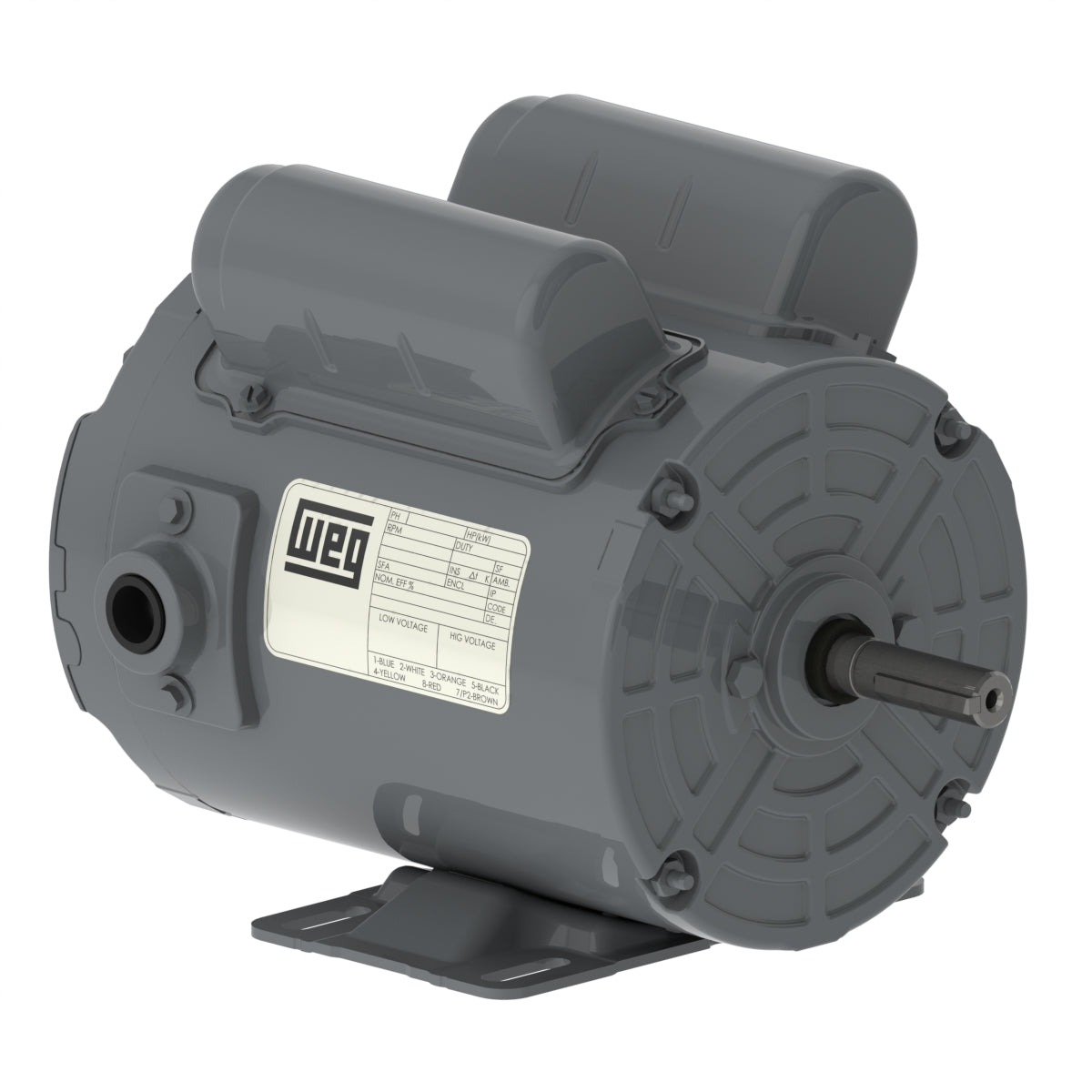

Weg Electric .7536AS1RAF56Z-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-mounted, General Purpose Motor

Weg Electric .7536AS1RAF56Z-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-mounted, General Purpose Motor

$351.55
$351.55
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

.7536AS1RAF56Z-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO
