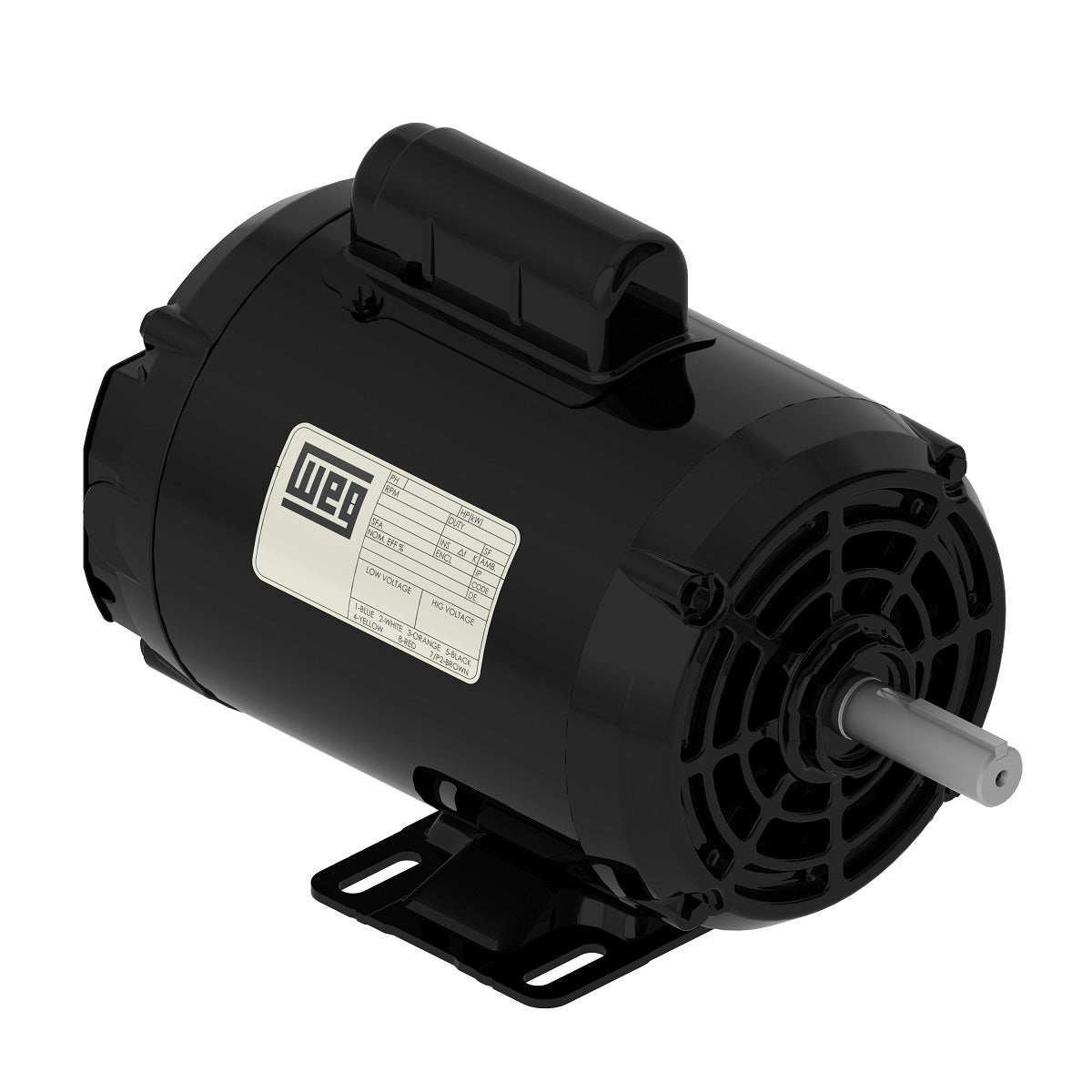

Weg Electric .7536ES1BOL56-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose Motor

Weg Electric .7536ES1BOL56-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose Motor

$292.81
$292.81
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

.7536ES1BOL56-S, 3/4 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose Motor

Engineering Data

Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 8.00/4.42-4.00 A
L. R. Amperes 64.0/35.4-32.0 A
LRC 8.0x(Code L)
No load current 4.00/0.000-2.00 A
Rated torque 1.11 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 18s (cold) 10s (hot)
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise Level² 68.0 dB(A)
Approx. weight³ 27.4 lb
