Industrial Motors

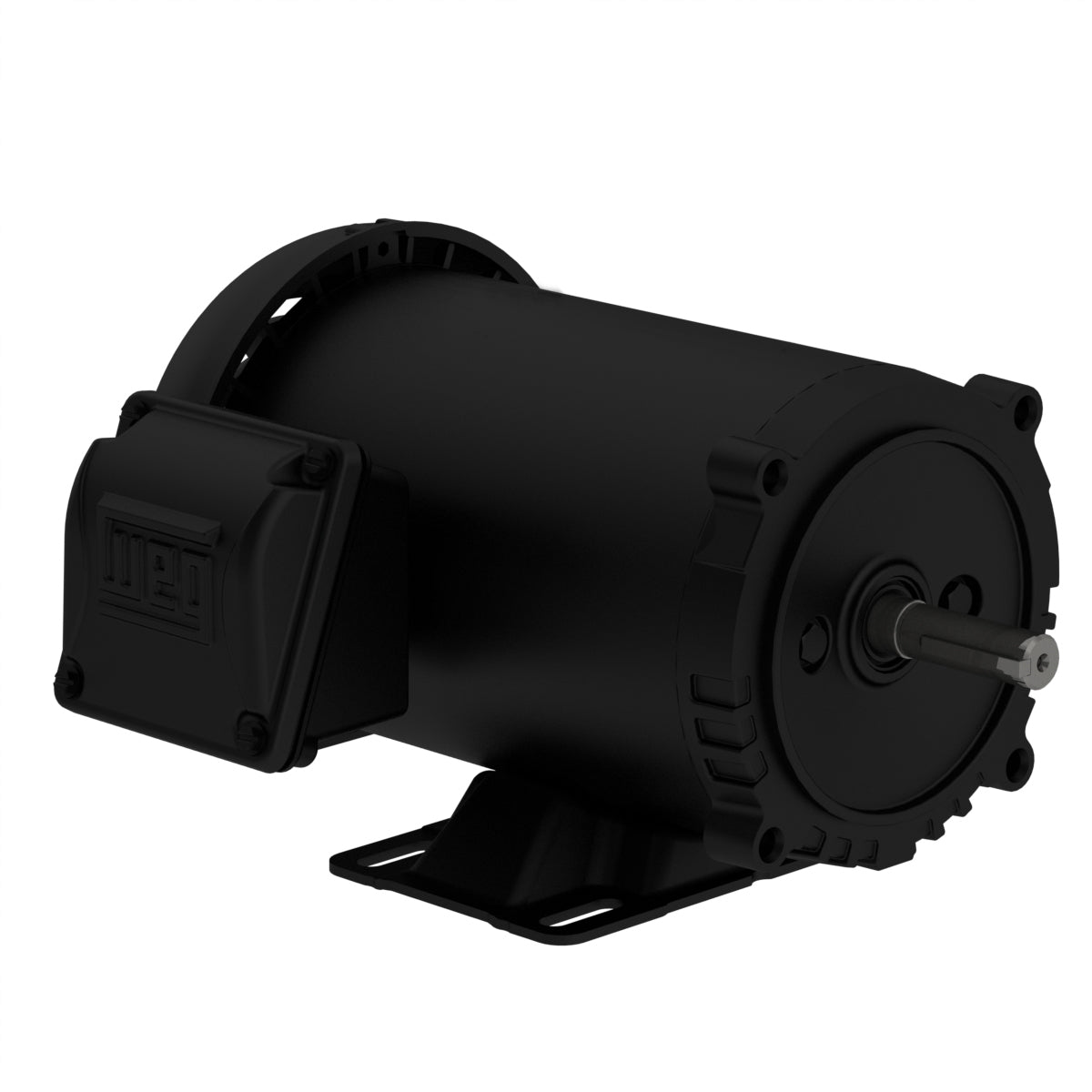

Weg Electric .7536ES3E56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Weg Electric .7536ES3E56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

$276.79
$276.79
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric .7536ES3E56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
