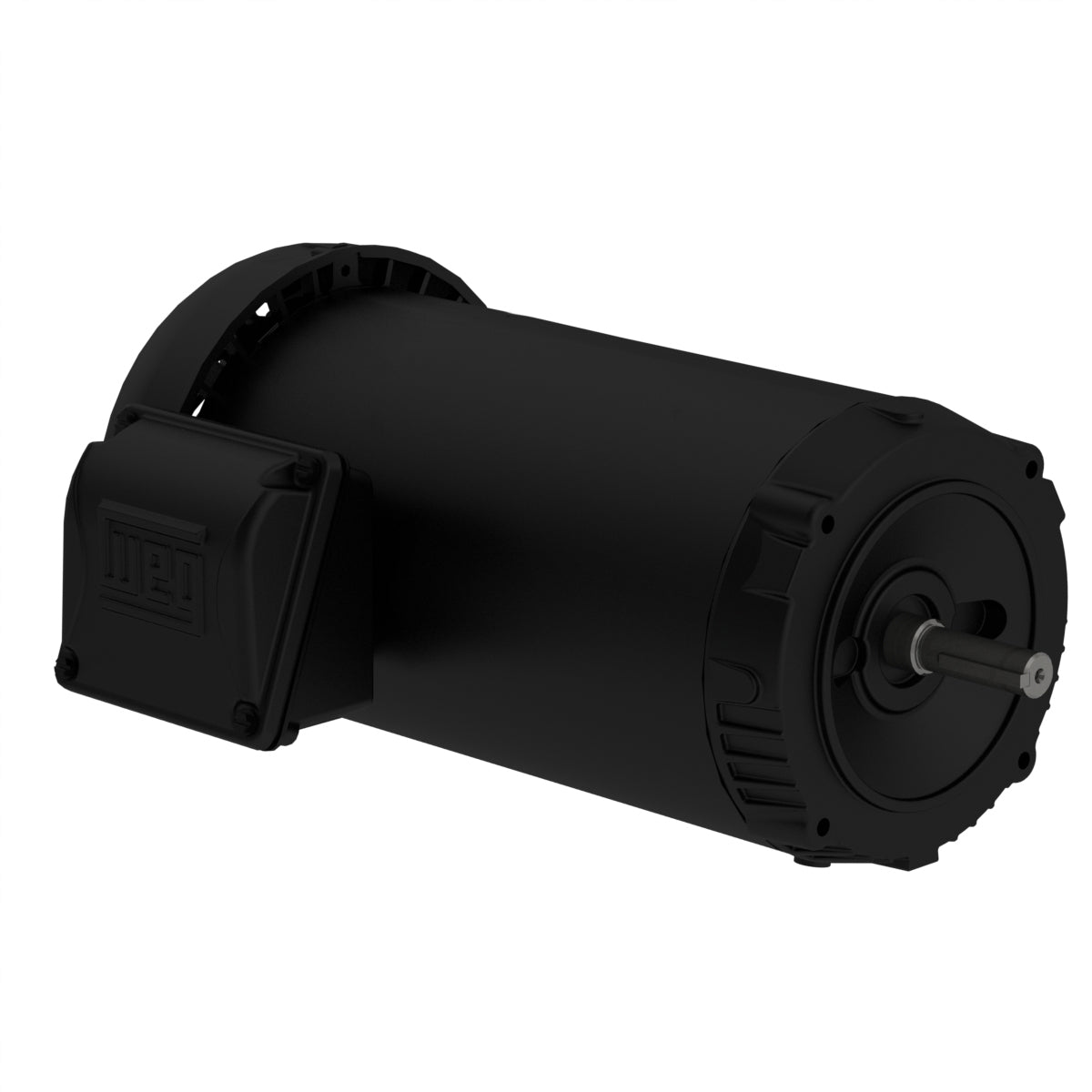

Weg Electric .7536ES3E56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 1 PH, TEFC, Footless, General Purpose Motor

.7536ES3E56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 1 PH, TEFC, Footless, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
