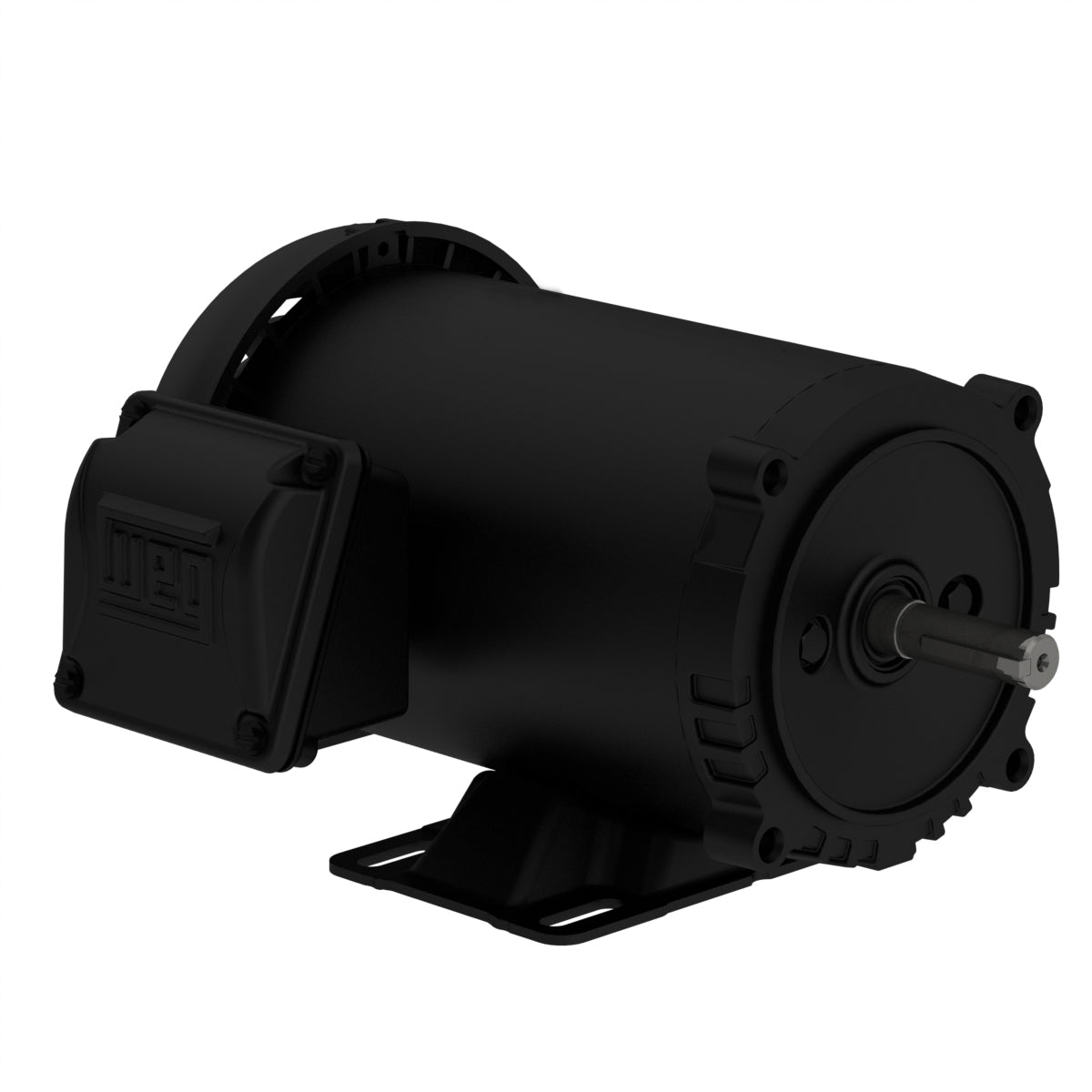

Weg Electric .7536ES3V56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 200/400 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

.7536ES3V56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 200/400 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
