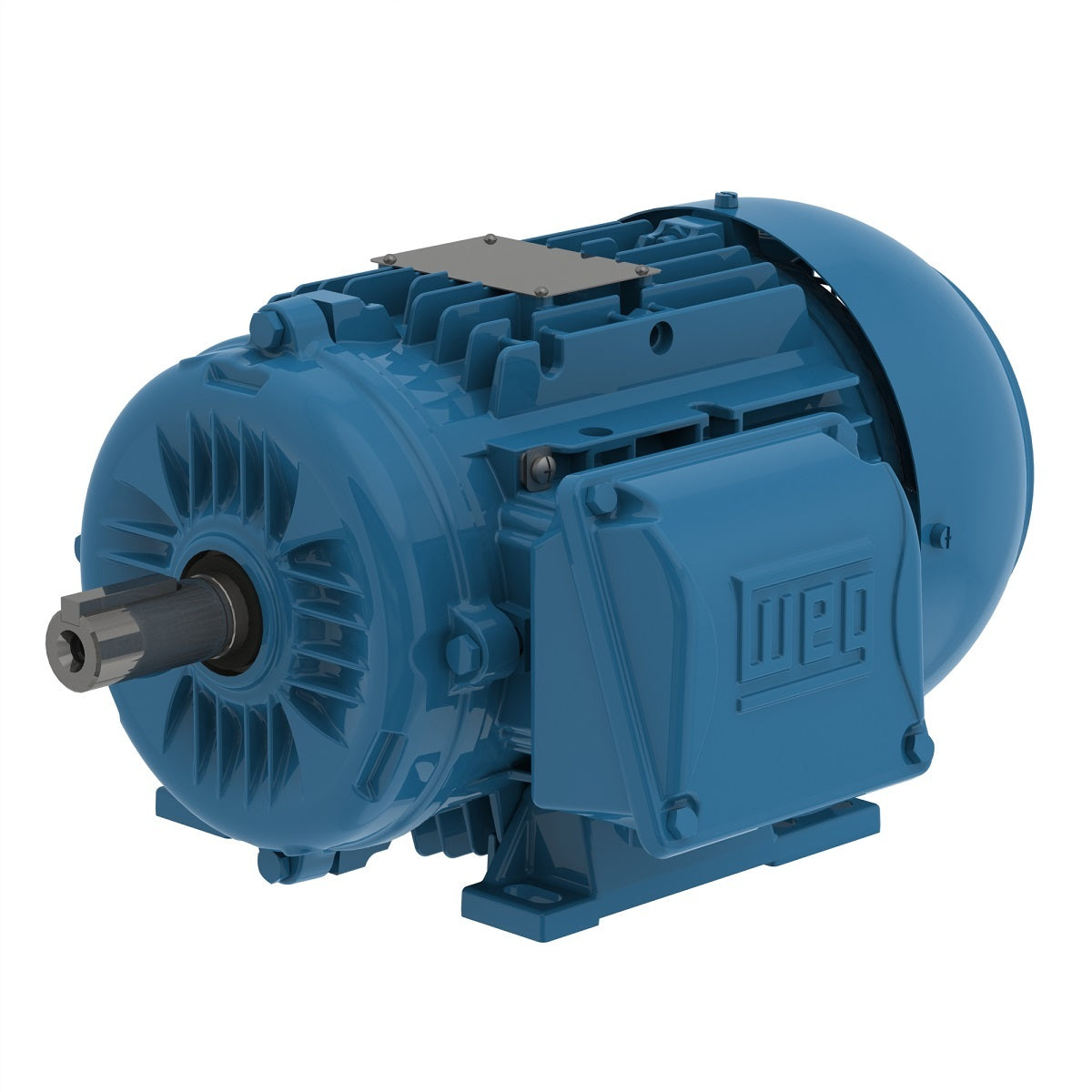

Weg Electric .7536ET3WAL80-W22, 1 Hp, 3600 Rpm, 80 FR, 460/220-240/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

.7536ET3WAL80-W22, 1 Hp, 3600 Rpm, 80 FR, 460/220-240/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//220-240/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
