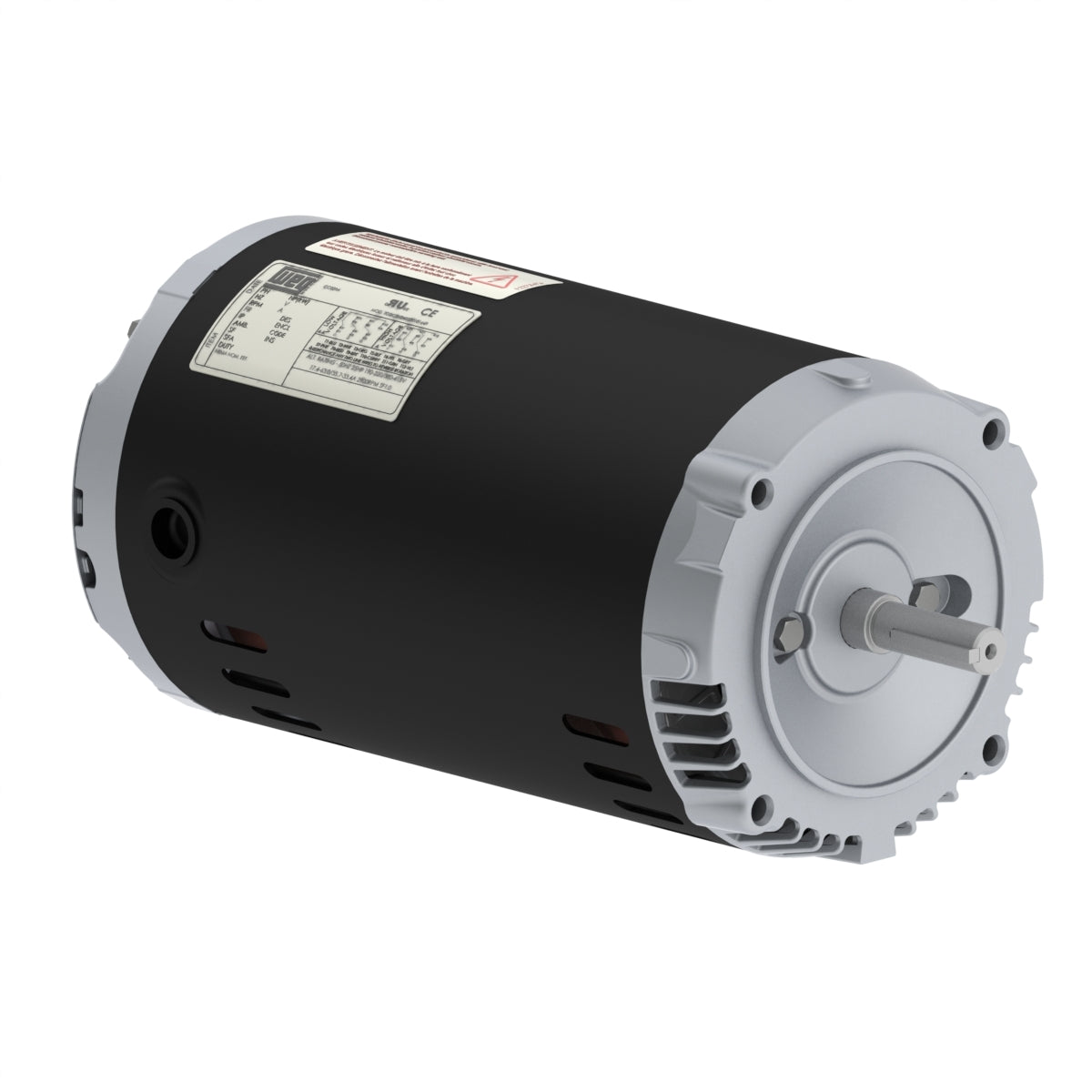

Weg Electric .7536OS3HJPR56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump.

.7536OS3HJPR56C-S, 3/4 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 575 V
Rated current 0.992 A
L. R. Amperes 6.15 A
LRC 6.2x(Code K)
No load current 0.640 A
Rated torque 1.13 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Service factor 1.50
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
