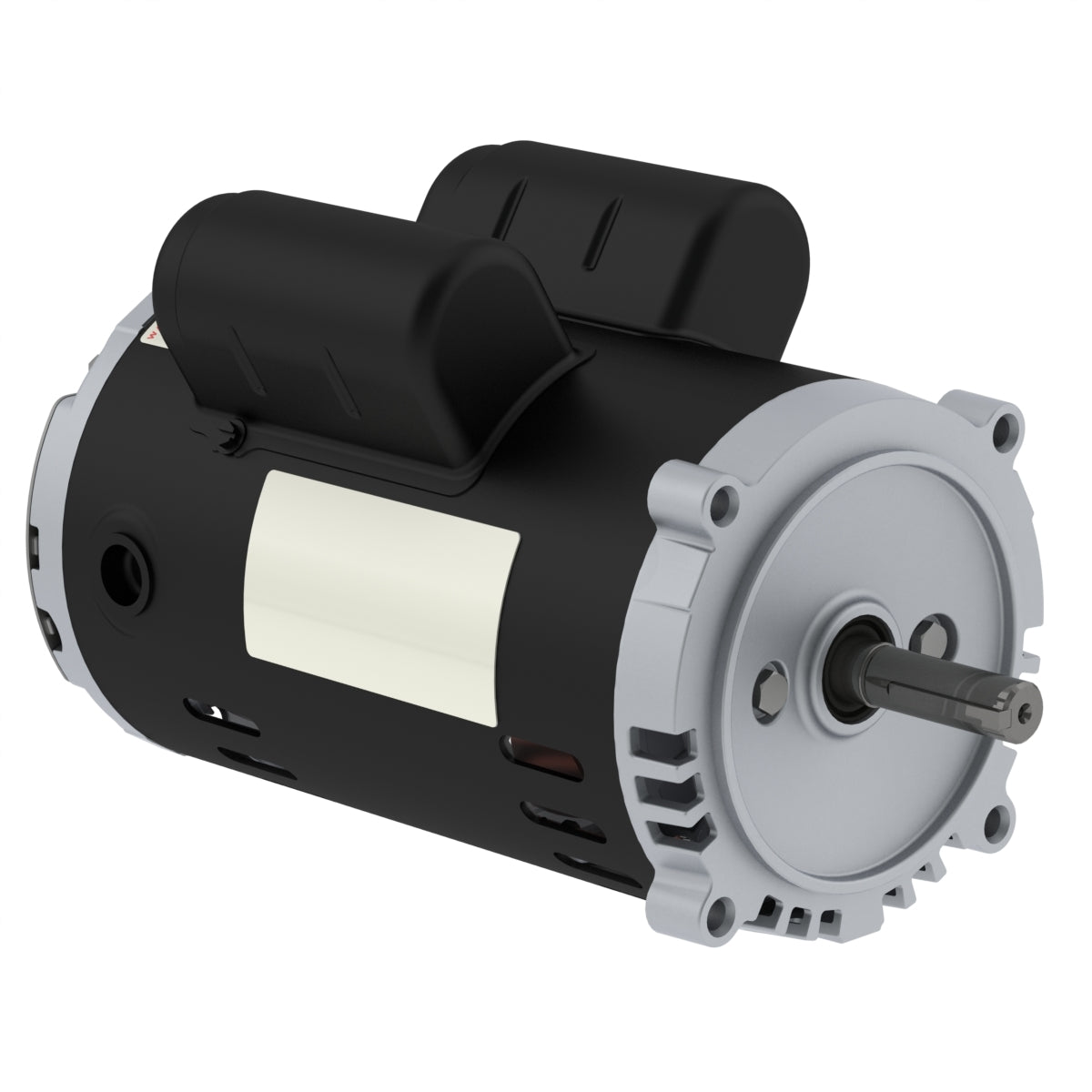

Weg Electric .7536OT1BO56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel.

.7536OT1BO56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 6.80/3.76-3.40 A
L. R. Amperes 58.5/32.3-29.2 A
LRC 8.6x(Code K)
No load current 2.40/1.03-1.20 A
Rated torque 1.12 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.0434 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
