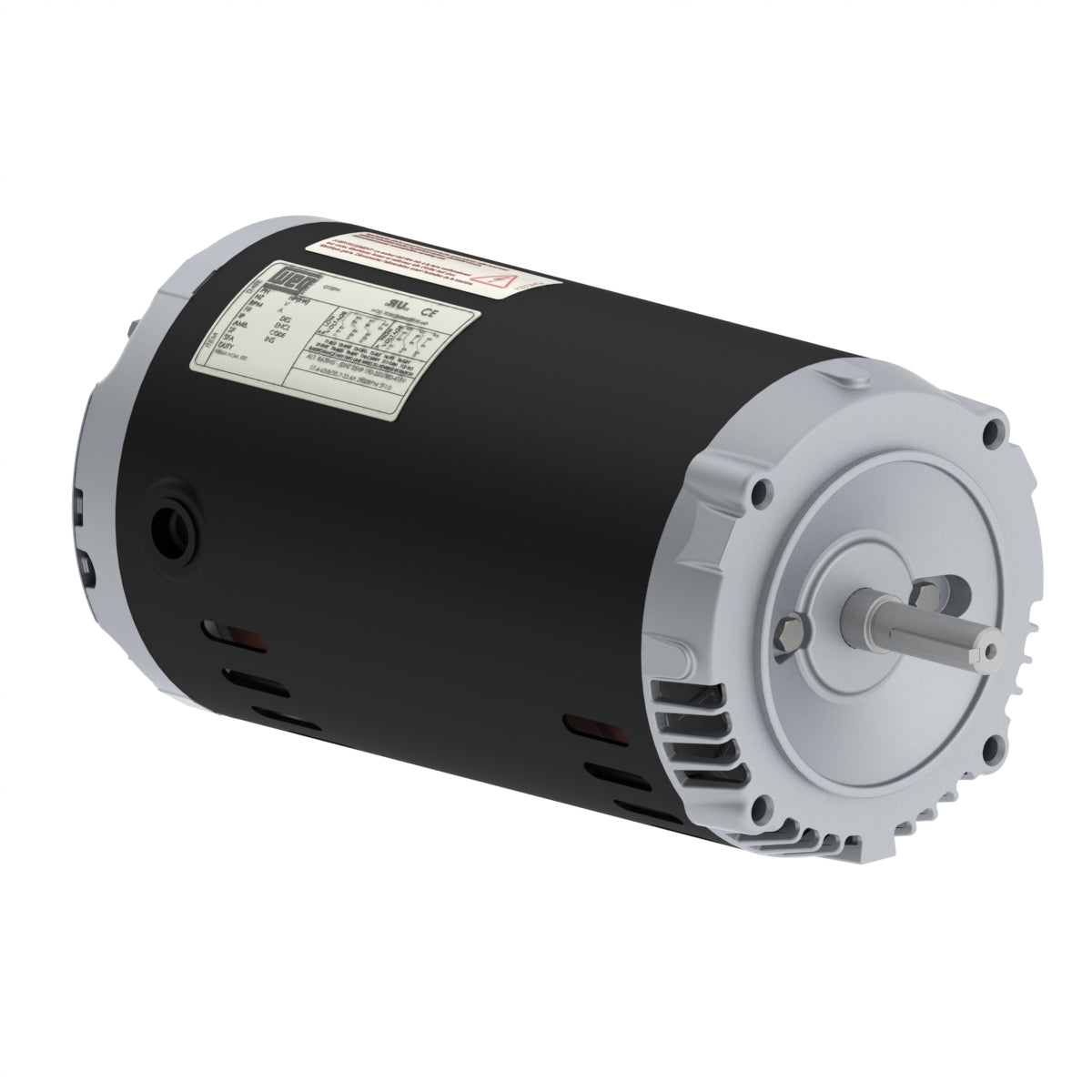

Weg Electric .7536OT3E56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, General Purpose Motor.

.7536OT3E56CFL-S, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.75 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 208-230/460 V
Rated current 2.52-2.28/1.14 A
L. R. Amperes 16.4-14.8/7.41 A
LRC 6.5x(Code J)
No load current 1.12-1.30/0.650 A
Rated torque 1.13 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
