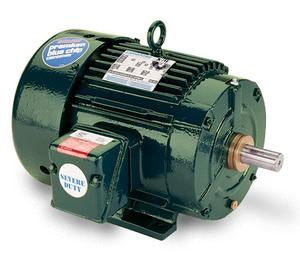

(811587.00) 125HP..1800RPM.444T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

(811587.00) 125HP..1800RPM.444T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

Engineering Data
Volts 460 Volts Volts
F.L. Amps 146 F.L. Amps F.L. Amps
S. F Amps 166 S. F Amps S. F Amps

RPM 1800 Hertz 60
HP 125 Duty CONTINUOUS TYPE TW
KW 93
Frame 444T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.4 Eff 75% PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6316
CC Number CC005A CE Yes Bearing PE 6318
Load Type Inverter Type Speed Range NONE

Motor Wt. 2630 LB Enclosure TEFC Lubrication STANDARD
Nameplate B-92722-BM-ABCDGJKLMN-HDKNP-K-D- Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300U-LE
Cust Part No Outline B-SS517026LE-2025 Ext. Diag2
Packaging N Winding T4444143
Carton Label GROUP: 1
Iris Paint GREEN (EPOXY) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc DIVISION 2 T2B Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, 460 Volts, 125 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 52.0 1.8 1800 0.0 0.0 4.5 0.0 -
0.25 64.0 25.0 1797 91.5 91.7 49.5 0.0 -
0.5 86.0 49.0 1793 183.0 95.0 71.5 0.0 -
0.75 114.0 73.0 1790 275.0 95.4 80.5 0.0 -
1.0 146.0 98.0 1785 368.0 95.4 84.0 80.0 -
1.15 166.0 113.0 1783 423.0 95.0 85.0 110.0 -
1.25 180.0 123.0 1780 461.0 95.0 85.5 0.0 -
SOURCE: CALCULATED GROUP: 1
