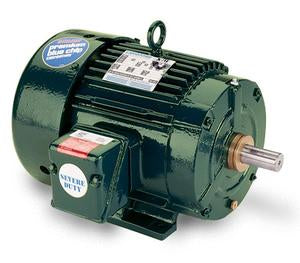

(811589.00) 150HP..1800RPM.445T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

(811589.00) 150HP..1800RPM.445T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

Volts 460 Volts Volts
F.L. Amps 172 F.L. Amps F.L. Amps
S. F Amps 195 S. F Amps S. F Amps

RPM 1800 Hertz 60
HP 150 Duty CONTINUOUS TYPE TW
KW 112
Frame 445T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.8 Eff 75% PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6316
CC Number CC005A CE Yes Bearing PE 6318
Load Type Inverter Type Speed Range NONE

Motor Wt. 3000 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-ABCDGJKLMN-HDKNP-LZ-D-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300U-LE
Cust Part No Outline B-SS517026LE-2025 Ext. Diag2
Packaging N Winding T4454127
Carton Label GROUP: 1
Iris Paint GREEN (EPOXY) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc DIVISION 2 T2B Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, 460 Volts, 150 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 60.0 3.0 1800 0.0 0.0 4.5 0.0 -
0.25 72.0 30.0 1796 110.0 93.0 53.0 45.0 -
0.5 100.0 58.5 1792 220.0 95.4 74.0 40.0 -
0.75 135.0 87.5 1790 330.0 96.2 82.0 0.0 -
1.0 172.0 117.0 1785 441.0 95.8 85.0 70.0 -
1.15 195.0 134.0 1782 508.0 95.8 86.0 95.0 -
1.25 212.0 146.0 1780 553.0 95.4 86.0 0.0 -
SOURCE: CALCULATED GROUP: 1
