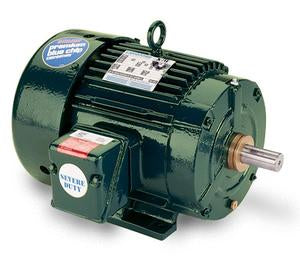

811590.00, 200 Hp, 3600 Rpm, 445TS Fr, 460 Vac, 3 PH, Rigid Base, IEEE-841 Motor

811590.00 200HP..3600RPM.445TS.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

Engineering Data
Volts 460 Volts Volts
F.L. Amps 224 F.L. Amps F.L. Amps
S. F Amps 254 S. F Amps S. F Amps

RPM 3600 Hertz 60
HP 200 Duty CONTINUOUS TYPE TFN
KW 149
Frame 445TS Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.4 Eff 75% PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6313
CC Number CC005A CE Yes Bearing PE 6313
Load Type Inverter Type Speed Range NONE

Motor Wt. 2089 LB Enclosure TEFC Lubrication STANDARD
Nameplate B-92722-BM-ABCDGJKLMN-HDKNP-LZ-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300U-LE
Cust Part No Outline B-SS516995LE-2025 Ext. Diag2
Packaging N Winding T445280
Carton Label GROUP: 1
Iris Paint GREEN - LEESON (EPOXY) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc DIVISION 2 T2B Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, 460 Volts, 200 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 69.5 4.0 3600 0.0 0.0 6.8 0.0 -
0.25 89.0 42.0 3595 73.0 90.2 58.5 0.0 -
0.5 127.0 80.0 3590 147.0 94.1 78.5 0.0 -
0.75 173.0 118.0 3580 220.0 95.0 85.5 0.0 -
1.0 224.0 157.0 3575 294.0 95.4 88.0 75.0 -
1.15 254.0 180.0 3570 338.0 95.4 89.0 105.0 -
1.25 277.0 196.0 3565 368.0 95.0 89.0 0.0 -
SOURCE: CALCULATED GROUP: 1
