Industrial Motors

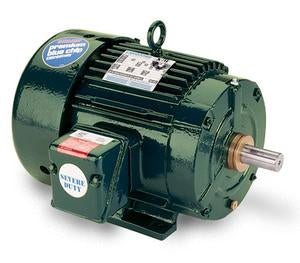

(811591.00) 200HP..1800RPM.445T.TEFC.460V.3-H.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

(811591.00) 200HP..1800RPM.445T.TEFC.460V.3-H.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

$35,766.00
$35,766.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$35,766.00 $19,313.64
Sale

(811591.00) 200HP..1800RPM.445T.TEFC.460V.3-H.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

Volts 460 Volts Volts
F.L. Amps 226 F.L. Amps F.L. Amps
S. F Amps 258 S. F Amps S. F Amps
RPM 1800 Hertz 60
HP 200 Duty CONTINUOUS TYPE TW
KW 149
Frame 445T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 96.2 Eff 75% PF 86
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6316
CC Number CC005A CE Yes Bearing PE NU318
Load Type Inverter Type Speed Range NONE
Motor Wt. 3050 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-ABCDGJKLMN-HDKNP-LZ-D-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300U-LE
