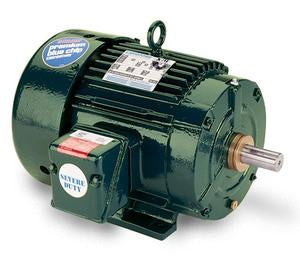

(811594.00) 300HP..1800RPM.447/9T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

(811594.00) 300HP..1800RPM.447/9T.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......IEEE-841

Engineering Data
Volts 460 Volts Volts
F.L. Amps 339 F.L. Amps F.L. Amps
S. F Amps 390 S. F Amps S. F Amps

--------------------------------------------------------------------------------

RPM 1800 Hertz 60
HP 300 Duty CONTINUOUS TYPE TW
KW 224
Frame 447/449T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 96.5 Eff 75% PF 86
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6318
CC Number CC005A CE Yes Bearing PE 6319
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-ABCDGJKLMN-HDKNP-S-D-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300BH-LE
Cust Part No Outline B-SS515631LE-2875 Ext. Diag2
Packaging N Outline Dash No Winding T449445
Carton Label GROUP: 1
Iris Paint GREEN - LEESON (EPOXY) Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc DIVISION 2 T2B Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60 Hz, 460 Volts, 300 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 98.0 4.5 1800 0.0 0.0 4.5 0.0 -
0.25 125.0 60.0 1796 219.0 93.0 60.0 45.0 -
0.5 187.0 117.0 1792 439.0 95.4 78.0 40.0 -
0.75 260.0 174.0 1788 660.0 96.5 84.5 0.0 -
1.0 339.0 232.0 1785 883.0 96.5 86.0 75.0 -
1.15 390.0 267.0 1782 1015.0 96.2 86.0 105.0 -
1.25 425.0 290.0 1778 1105.0 95.8 86.0 0.0 -
SOURCE CALCULATED GROUP 1
