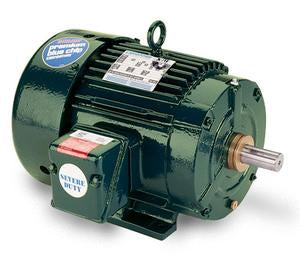

(811595.00) 350HP.3600RPM.447/9TS.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.IEEE-841

(811595.00) 350HP.3600RPM.447/9TS.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.IEEE-841

Engineering Data
Volts 460 Volts Volts
F.L. Amps 380 F.L. Amps F.L. Amps
S. F Amps 435 S. F Amps S. F Amps

--------------------------------------------------------------------------------

RPM 3600 Hertz 60
HP 350 Duty CONTINUOUS TYPE TW
KW 260
Frame 447/449TS Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class H Protection NOT Therm.Prot.
Eff 100% 95.8 Eff 75% PF 89
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6313
CC Number CC005A CE Yes Bearing PE 6313
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-ABCDGJKLMN-HDKNP-KZ-D-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300-LE
Cust Part No Outline B-SS515689LE-2875 Ext. Diag2
Packaging N Outline Dash No Winding T449262
Carton Label GROUP: 1
Iris Paint GREEN - LEESON (EPOXY) Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc DIVISION 2 Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60 Hz, 460 Volts, 350 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 98.0 7.5 3600 0.0 0.0 5.5 0.0 -
0.25 135.0 70.0 3592 128.0 93.0 65.0 0.0 -
0.5 208.0 137.0 3585 256.0 95.4 82.0 0.0 -
0.75 290.0 204.0 3580 385.0 95.8 87.5 0.0 -
1.0 380.0 272.0 3572 515.0 95.8 89.0 80.0 -
1.15 435.0 312.0 3568 593.0 95.8 89.5 110.0 -
1.25 475.0 340.0 3565 645.0 95.4 89.5 0.0 -
SOURCE CALCULATED GROUP 1
