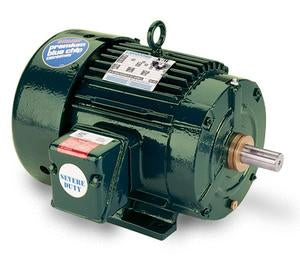

Leeson Electric 811644.00, 2 Hp, 1800 Rpm, 145T FR, 460 Vac, 3 PH, TEFC, Rigid Base, IEEE 841, Severe Duty Motor

811644.00, 2 Hp, 1800 Rpm, 145T FR, 460 Vac, 3 PH, TEFC, Rigid Base, IEEE 841, Severe Duty Motor.

Engineering Data

Volts 460 Volts Volts
F.L. Amps 3 F.L. Amps F.L. Amps
S. F Amps 3.1 S. F Amps S. F Amps

RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE TV
KW 1.49
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design A Code N
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75% PF 78
UL V-INS, CONST UL REC CSA No Bearing OPE 203
CC Number EXEMPT CE Yes Bearing PE 205
Load Type Inverter Type Speed Range 1.5 X BASE SPEED

Motor Wt. 77 LB Enclosure TENV Lubrication VERIFY
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. 6/7 IN Ext. Diag. A-EE7300-LE
Cust Part No Outline A-104326LE-625 Ext. Diag2
Packaging B Outline Dash No Winding ZT490
Carton Label GROUP : 6
Iris Paint GREEN - LEESON WATTSAVER Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc DIVISION 2 T2B Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz , NONE Volts , 2 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.6 0.12 1800 0.0 0.0 9.5 0.0
-
0.25 2.0 0.5 1785 1.5 74.0 35.0 0.0
-
0.5 2.1 0.9 1775 3.0 82.5 55.0 0.0
-
0.75 2.5 1.3 1760 4.5 85.5 70.0 0.0
-
1.0 3.0 1.7 1740 6.0 86.5 78.0 80.0
-
1.15 3.1 2.0 1735 7.0 85.5 81.0 95.0
-
1.25 3.3 2.2 1730 7.6 85.5 82.5 0.0
-
SOURCE: CALCULATED GROUP: 5
