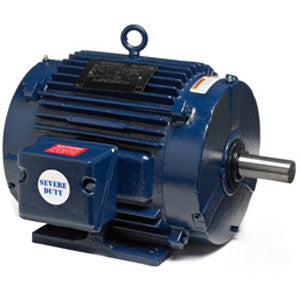

824567.00, 125 Hp, 1200 Rpm, 445T FR, 460 Vac, 3 PH, TEAO, Rigid Base, Cooling Tower Single Speed Motor

824567.00, 125 Hp, 1200 Rpm, 445T FR, 460 Vac, 3 PH, TEAO, Rigid Base, Cooling Tower Single Speed Motor.

Engineering Data
Volts 460 Volts Volts 380
F.L. Amps 148 F.L. Amps F.L. Amps 146
S. F Amps 168 S. F Amps S. F Amps

RPM 1200 Hertz 60/50
HP 125 Duty CONTINUOUS AOM TYPE TTN
KW 93
Frame 445TV Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.4 Eff 75% PF 83
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6316
CC Number EXEMPT CE Yes Bearing PE 6318
Load Type Inverter Type Speed Range NONE

Motor Wt. 1964 LB Enclosure TEAO Lubrication POLYREX EM
Nameplate B-92722-BM-ACDGLMNQ-HJK-K-X-D Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7300S
Cust Part No Outline B-SS555819-2025 Ext. Diag2
Packaging N Outline Dash No Winding T4456124
Carton Label GROUP : 1
Iris Paint BLUE - LEESON (EPOXY) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz , 380 Volts , 125 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 52.0 2.5 1200 0.0 0.0 4.5 0.0 -
0.25 62.5 25.5 1198 137.0 91.7 51.0 0.0 -
0.5 85.5 49.5 1195 275.0 94.5 71.5 0.0 -
0.75 115.0 73.5 1192 413.0 95.4 80.0 0.0 -
1.0 148.0 98.0 1190 552.0 95.4 83.0 0.0 -
1.15 168.0 113.0 1188 636.0 95.4 84.0 0.0 -
1.25 183.0 123.0 1186 692.0 95.0 84.0 0.0 -
