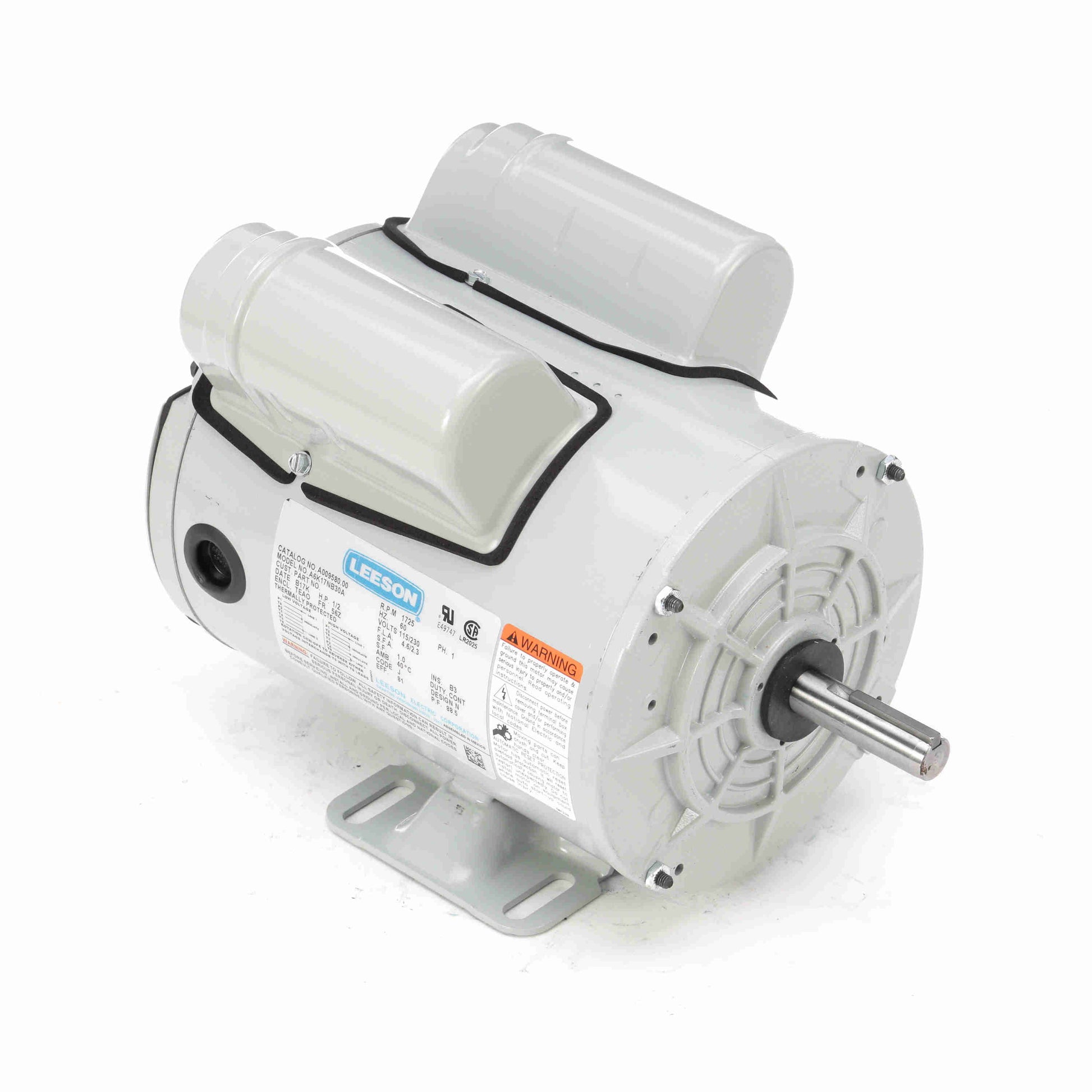

Leeson Electric A009580.00, 1/2 HP, 1800 RPM, 56Z FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

A009580.00, 1/2 HP, 1800 RPM, 56Z FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:115/230 V
Current:4.6/2.3 A
Speed:1725 rpm
Service Factor:1
Phase:1
Efficiency:81 %
Power Factor:88.5
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:J
Frame:56Z
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:11.44 in
Frame Length:7.56 in
Shaft Diameter:0.625 in
Shaft Extension:2.32 in
Assembly/Box Mounting:F1 ONLY
