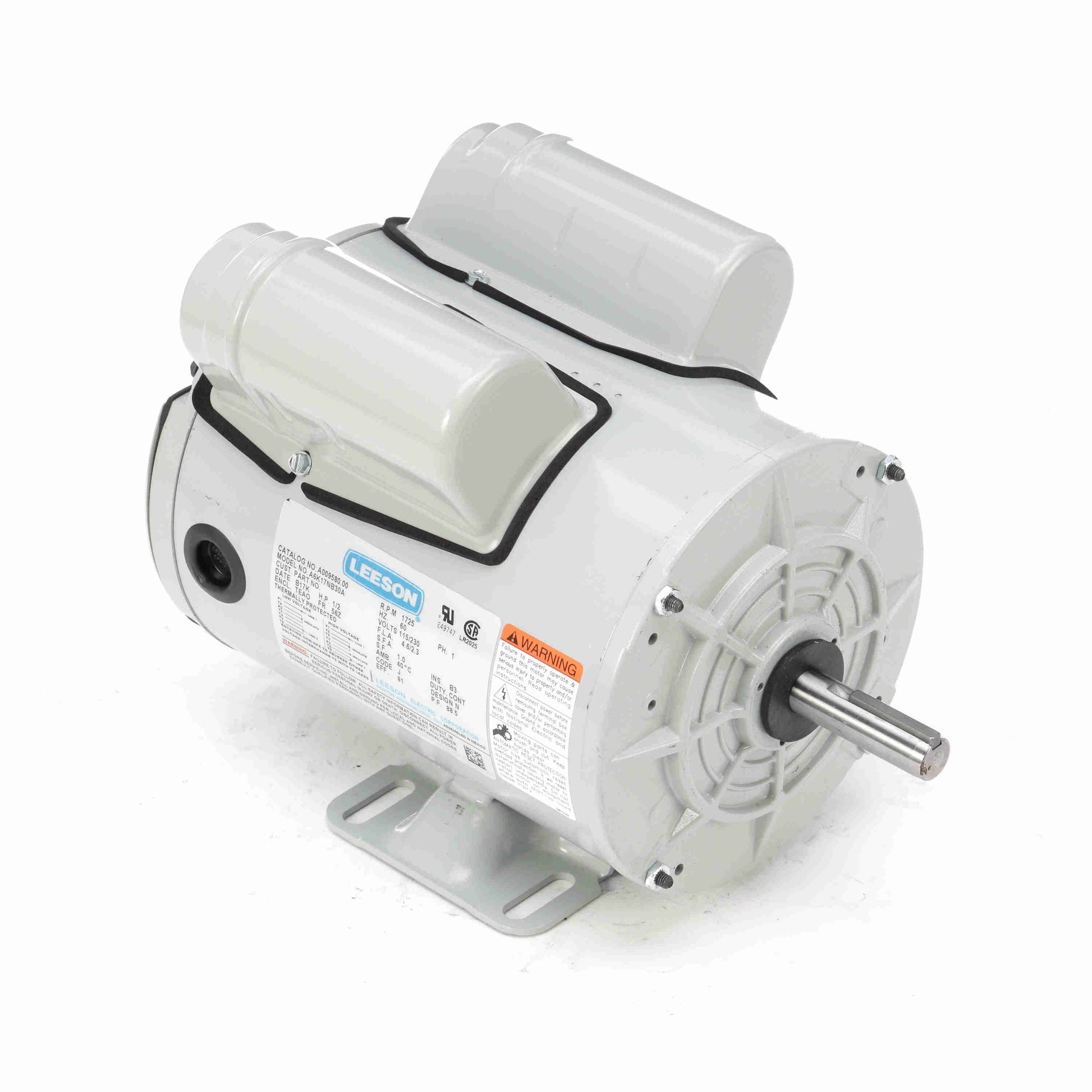

Leeson Electric A009581.00, 3/4 HP, 1800 RPM, 56 FR, 115/230 Vac, 1 PH, TEAO, Rigid Base, Agricultural Fan

A009581.00, 3/4 HP, 1800 RPM, 56 FR, 115/230 Vac, 1 PH, TEAO, Rigid Base, Agricultural Fan

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:115/230 V
Current:6.0/3.0 A
Speed:1725 rpm
Service Factor:1
Phase:1
Efficiency:83 %
Power Factor:99.2
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:E
Frame:56
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.94 in
Frame Length:7.06 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
