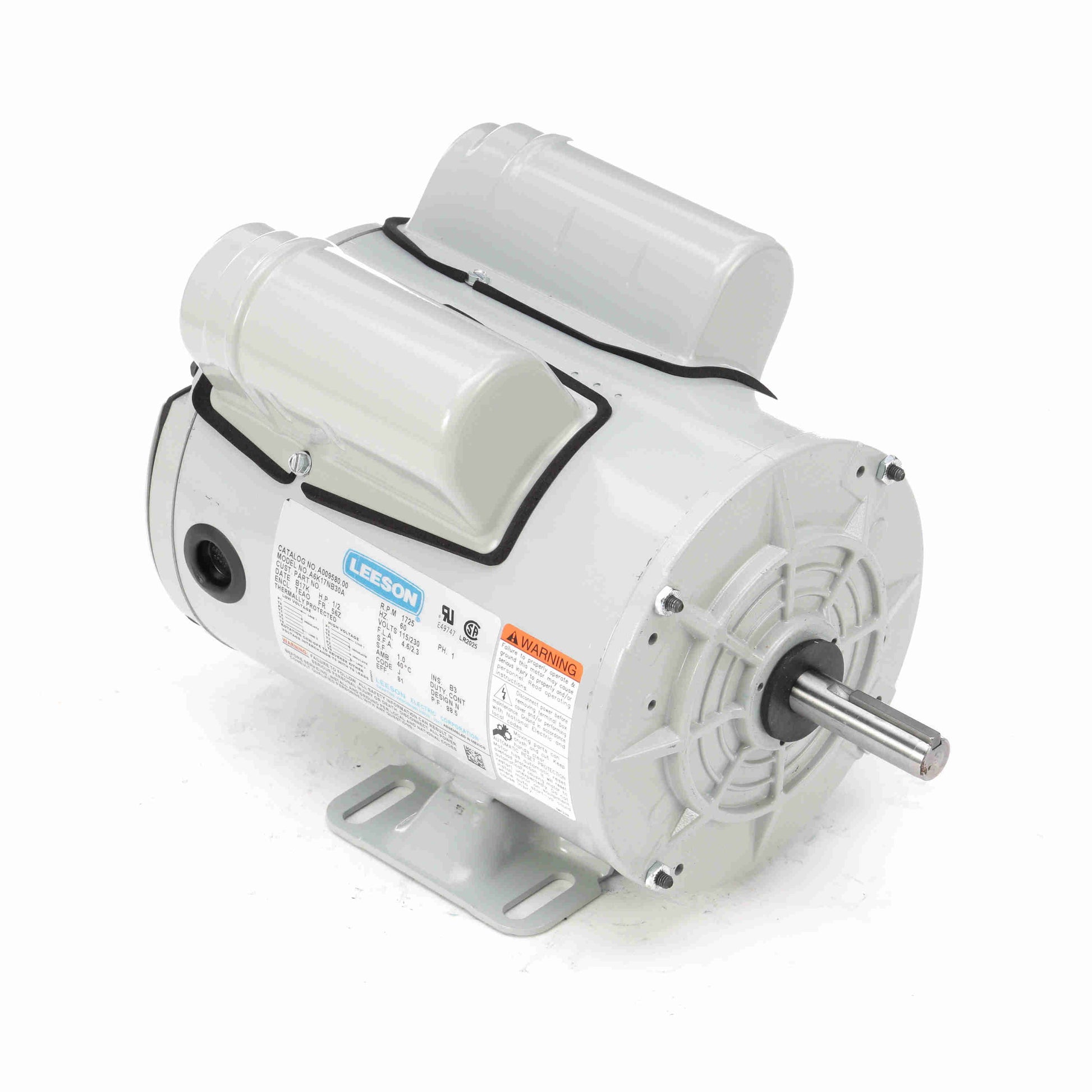

Leeson Electric A009595.00, 2 HP, 1800 RPM, 145 FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

A009595.00, 2 HP, 1800 RPM, 145 FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:230 V
Current:9.2 A
Speed:1749 rpm
Service Factor:1
Phase:1
Efficiency:81.6 %
Power Factor:86.3
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Frame:145
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.49 in
Frame Length:9.56 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 Only
