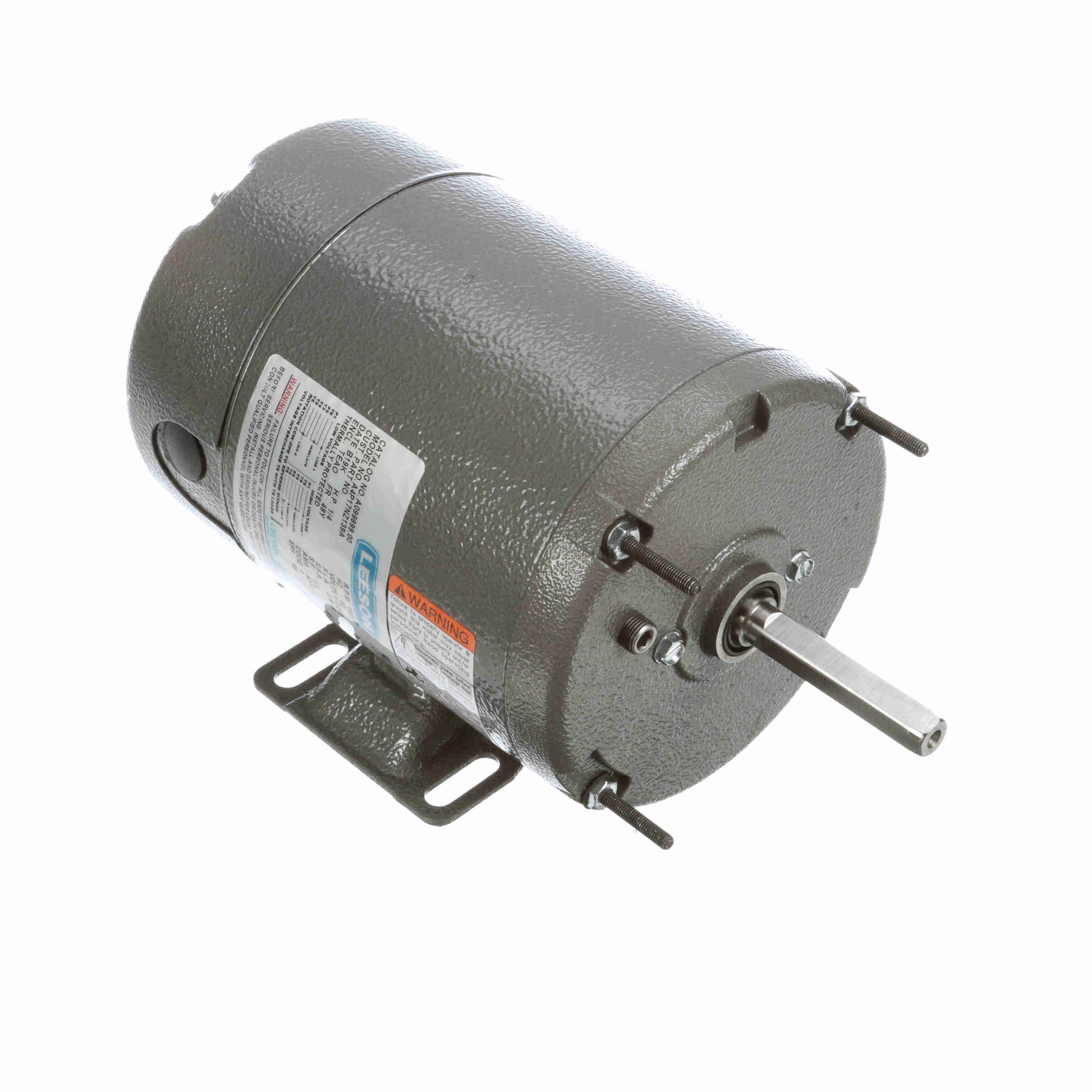

Leeson Electric A099462.00, 1/2 HP, 1200 RPM, 48Z FR, 115/230 Vac, 1 PH, TEAO, Rigid Base, Agricultural Fan

A099462.00, 1/2 HP, 1200 RPM, 48Z FR, 115/230 Vac, 1 PH, TEAO, Rigid Base, Agricultural Fan

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:115/230 V
Current:5.5/2.8 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:68.9 %
Power Factor:85.7
Duty:Continuous
Insulation Class:F
Design Code:N
KVA Code:D
Frame:48Z
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Resistance Main:6.44 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:10.89 in
Frame Length:5.50 in
Shaft Diameter:0.500 in
Shaft Extension:2.24 in
Assembly/Box Mounting:F1 Only
