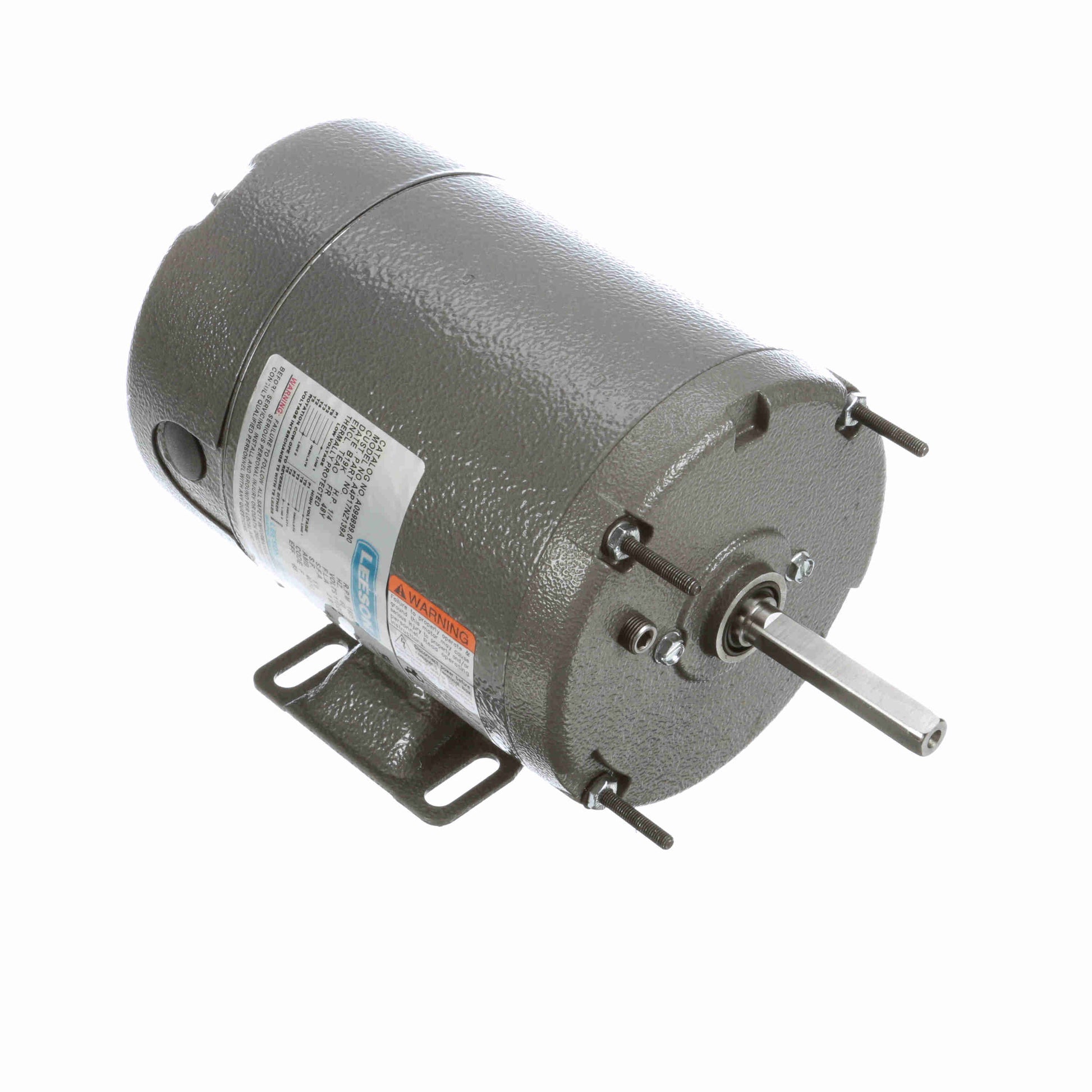

Leeson Electric A099899.00, 1/4 HP, 1800 RPM, 48Y FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

A099899.00, 1/4 HP, 1800 RPM, 48Y FR, 115/230 Vac, 1 PH, TEAO, Agricultural Fan

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:115/230 V
Current:2.8/1.4 A
Speed:1625 rpm
Service Factor:1
Phase:1
Efficiency:68 %
Power Factor:87.5
Duty:Continuous
Insulation Class:F
Design Code:N
KVA Code:F
Frame:48Y
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:10.64 in
Frame Length:4.75 in
Shaft Diameter:0.625 in
Shaft Extension:2.56 in
Assembly/Box Mounting:F1 ONLY
