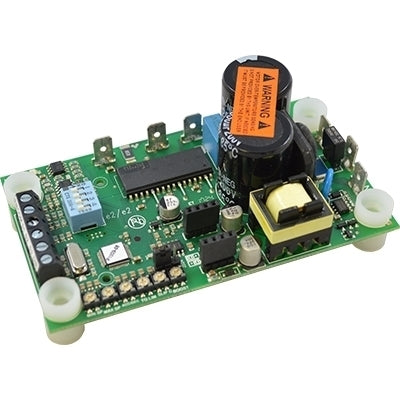

American Controls ACF700-0.65, Line Voltage AC Drive, 115/230 Vac Input, 0-12 Vac Output, 1/60-1/16 Hp, Open Chassis, Variable Frequency AC Drive

ACF700-0.65, Line Voltage AC Drive, 115/230 Vac Input, 0-12 Vac Output, 1/60-1/16 Hp, Open Chassis, Variable Frequency AC Drive

The ACF series is a microprocessor based variable frequency drive. The user adjustable trim pots allow the user to setup the drive similar to a DC motor control, meaning quick and easy installation without any of the programming typically associated with VFDs. ACF series drives control 115 or 230 VAC motors, single or three phase, with either a 115 or 230 VAC single phase input. This is because the ACF drive is equipped with a voltage doubling capability that allows you to run a 230 VAC motor when only a 115 VAC single phase power is available. The drive’s internal carrier frequency can easily be changed from 16kHz to 1.6kHz to minimize switching losses or reduce electrical interference. Stopping methods include coast to stop or DC injection braking. Incorporated into the design is a microprocessor which provides flexibility of creating custom programs that can include specific user setting for OEM applications. These full featured and compact AC drives are the perfect choice to run any 3 phase and some single phase motors.
