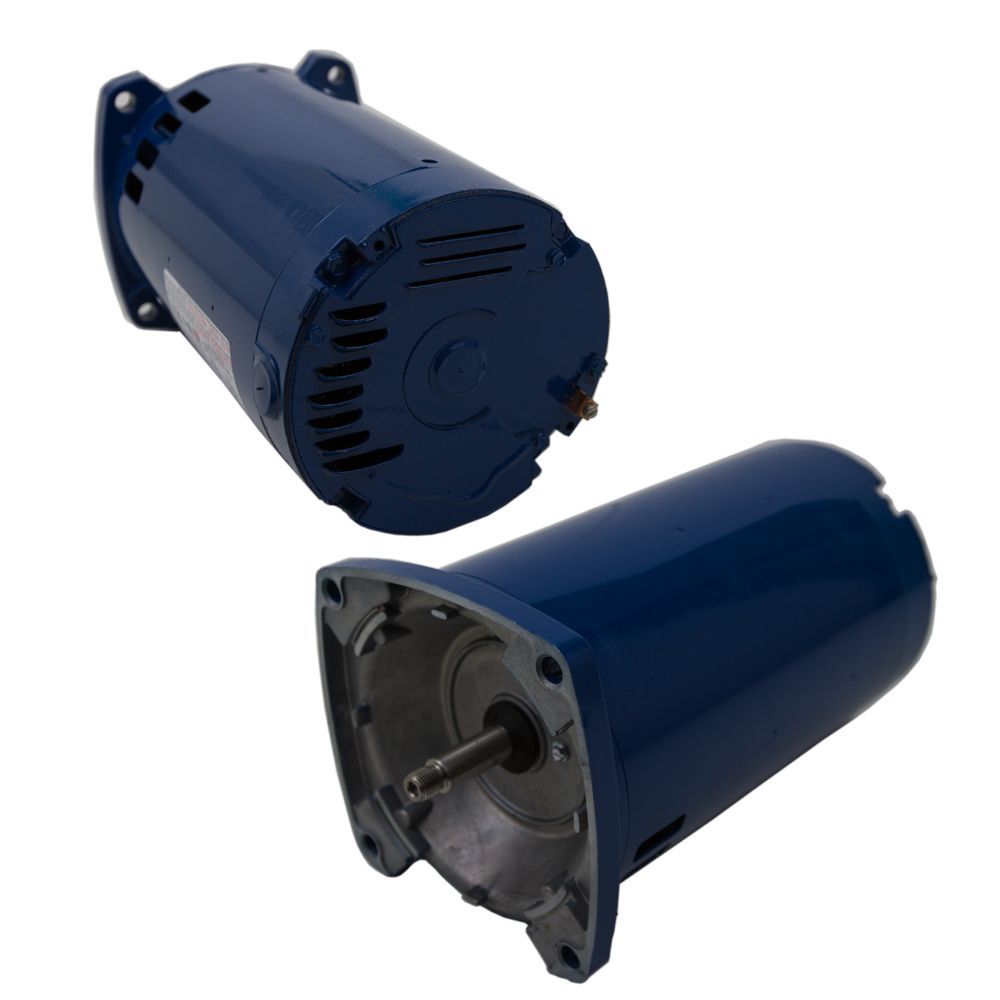

B1247, 5KCR39UN6190X, 2 Hp, 115/230, 56Y FR., 1 PH, 3600 Rpm, Dripproof, Square Flange, Pool (In Ground), Two Compartment, Up Rated Motor

B1247, 5KCR39UN6190X, 2 Hp, 115/230, 56Y FR., 1 PH, 3600 Rpm, Dripproof, Square Flange, Pool (In Ground), Two Compartment, Up Rated.

60 Hertz
HP 2 Voltage 115/230
kW N/A FL Amps 18.2/9.1
RPM 3450
FL Eff 0 % SF 1.1

Phase 1 Insulation Class B
Frame N/A Duty Continuous
Enclosure DP Ambient 50
Mounting N/R NEMA Design
Orientation Horizontal+C67 Starting Type Switch and Mech
Assembly N/A KVA Code J
Drive End Bearing LOCKED IP Code
Opposite End Bearing BALL
Drive End Bearing Size 20MM Rotation Clockwise
Opposite End Bearing Size 17MM Hazardous Location 2C
Weight 30 LB lbs
CE N/A CSA N/A
UL Y
Thermal Protection Automatic
