Industrial Motors

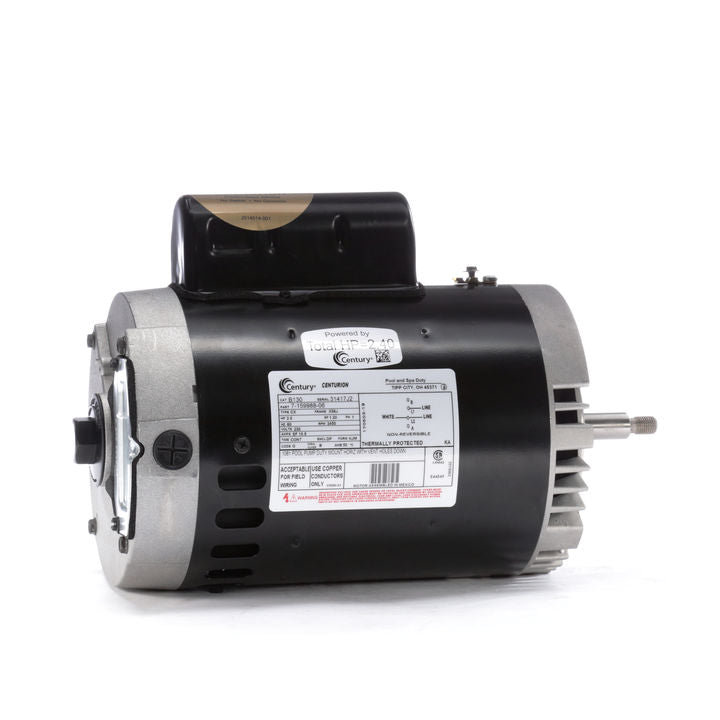

Century Electric B130, 2 Hp, 3600 Rpm, 6-1/2" Diameter (56J Frame), NEMA C, 230 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Pool and Spa, Full Rated Motor

Century Electric B130, 2 Hp, 3600 Rpm, 6-1/2" Diameter (56J Frame), NEMA C, 230 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Pool and Spa, Full Rated Motor

$478.83
$478.83
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

B130 (Non-Returnable) 2 Hp, 3600 Rpm, 6-1/2" Diameter (56J Frame), NEMA C, 230 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Pool and Spa, Full Rated Motor.

Engineering Data

Stock Number
B130

Horse Power
2.0

Amps
SF 10.5

Frequency
60

RPM
3450

Voltage
230

Number of Speeds
1

Motor Type
CX

Frame Size
X56J

Nema Suffix
J

Mounting Type
ROUND FRAME

Service Factory
1.20

Phase
1

Enclosure
DP

Bearings
BALL

Ambient Temperature
50

Insulation Class
B

Rotation
CCWPE

Protector
THERMALLY PROTECTED

Duty Cycle
CONT

Agency Approvals
ULCSA
