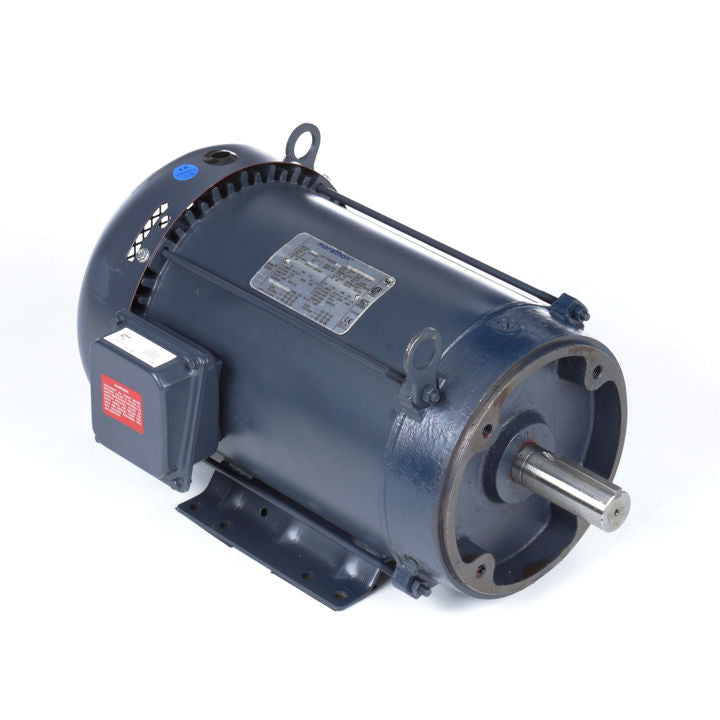

Leeson Electric B199005.00, 3 HP, 1200 RPM, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

B199005.00, 3 HP, 1200 RPM, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.6/4.3 A
Speed:1185 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:73
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:213T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6308
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:3.486 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.35 in
Frame Length:9.65 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
