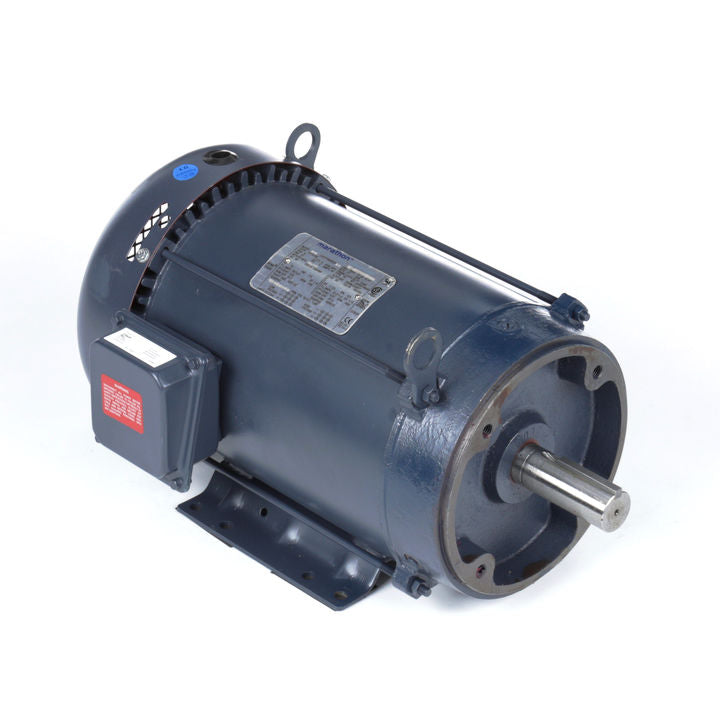

Leeson Electric B199008.00, 5 HP, 1200 RPM, 215T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

B199008.00, 5 HP, 1200 RPM, 215T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:13.7/6.9 A
Speed:1179 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:76
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:215T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:2.656 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:19.95 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
