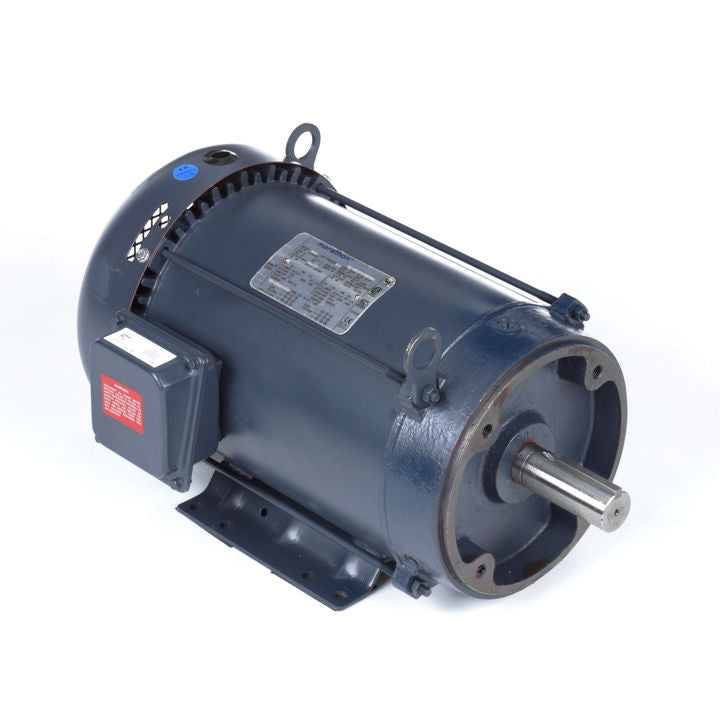

Leeson Electric B199010.00, 7 1/2 HP, 1800 RPM, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

B199010.00, 7 1/2 HP, 1800 RPM, 213T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:19.0/9.5 A
Speed:1768 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:80
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:1.473 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.35 in
Frame Length:9.65 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
