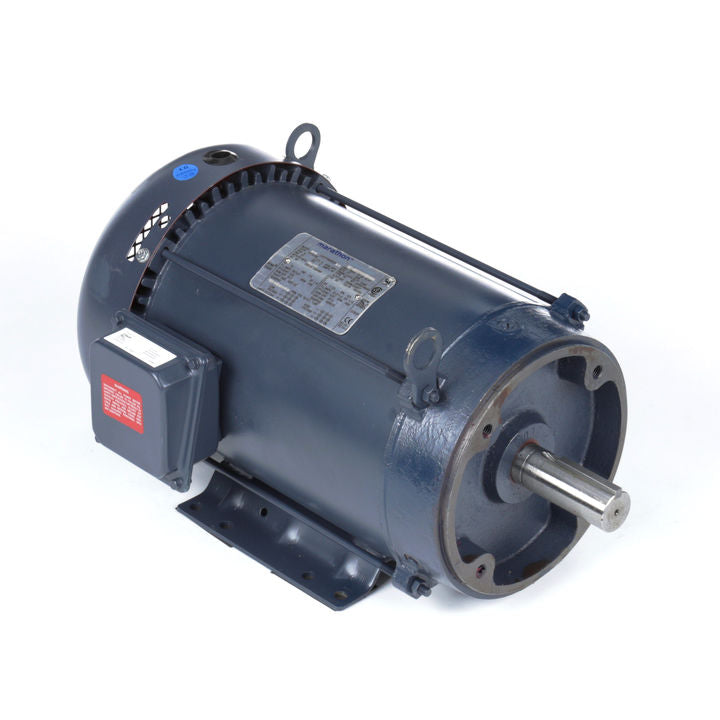

Leeson Electric B199740.00, 7 1/2 HP, 3000 RPM, 213TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

B199740.00, 7 1/2 HP, 3000 RPM, 213TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:7 1/2 Hp
Output KW:7.50 kW
Frequency:60 Hz
Voltage:230/460 V
Current:24.3/12.2 A
Speed:2925 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:86
Duty:CONTINUOUS
Insulation Class:F3
Design Code:B
KVA Code:G
Frame:213TC
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Y-(LEESON UL REC)
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:LINE OR INVERTER
Poles:2
Rotation:REV
Resistance Main:1.52 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:18.1 in
Frame Length:11.15 in
Shaft Diameter:1 3/8 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
