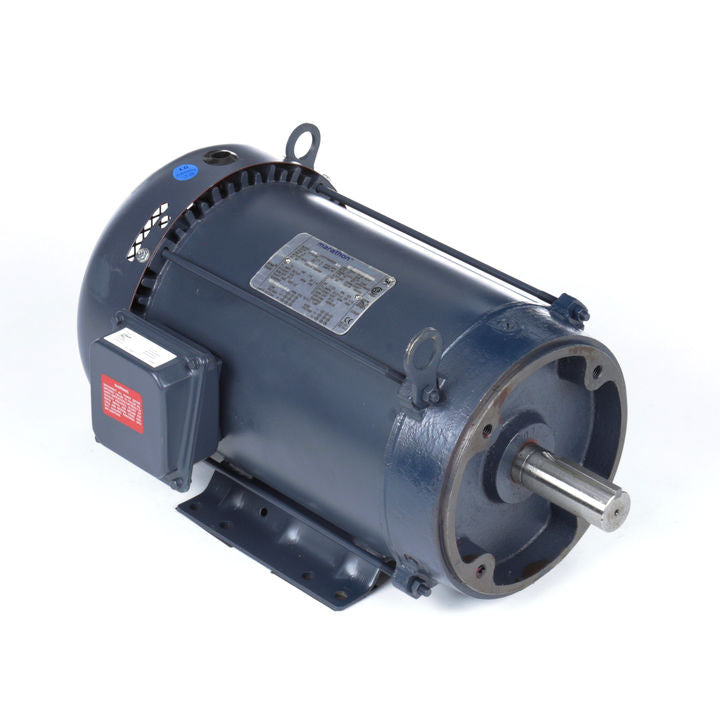

Leeson Electric B199742.00, 15 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

B199742.00, 15 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:36.0/18.0 A
Speed:3515 rpm
Service Factor:1.15
Phase:3
Efficiency:90.2 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:215TC
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.97 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.10 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
