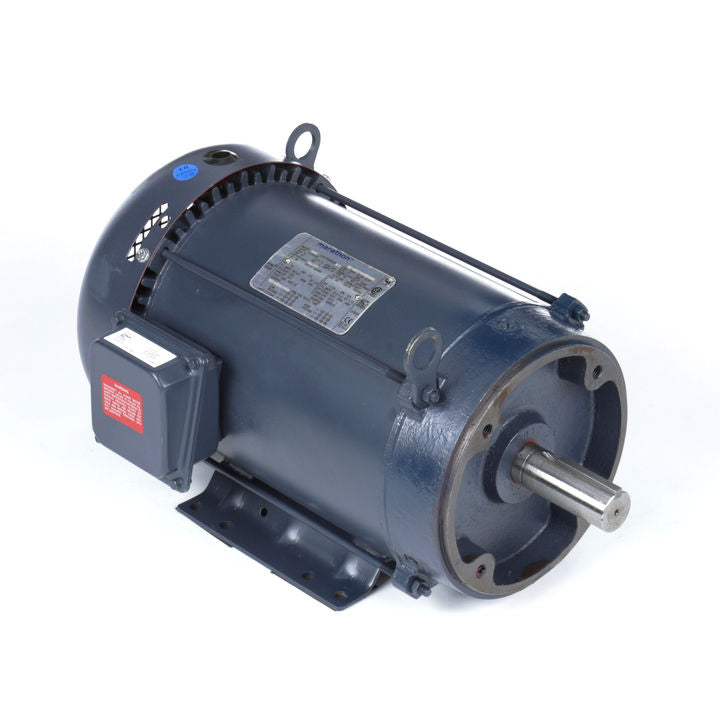

Leeson Electric B199745.00, 15 HP, 1500 RPM, 256TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

Leeson Electric B199745.00, 15 HP, 1500 RPM, 256TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

$2,477.00
$2,477.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,477.00 $1,337.58
Sale

B199745.00, 15 HP, 1500 RPM, 256TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:15 Hp
Output KW:14.9 kW
Frequency:60 Hz
Voltage:230/460 V
Current:48.5/24.3 A
Speed:1474 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:83.5
Duty:CONTINUOUS
Insulation Class:F7
Design Code:B
KVA Code:G
Frame:256TC
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6208
UL:Y-(LEESON UL REC)
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:LINE OR INVERTER
Poles:4
Rotation:REV
Resistance Main:.546 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:23.14 in
Frame Length:12.2 in
Shaft Diameter:1 5/8 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
