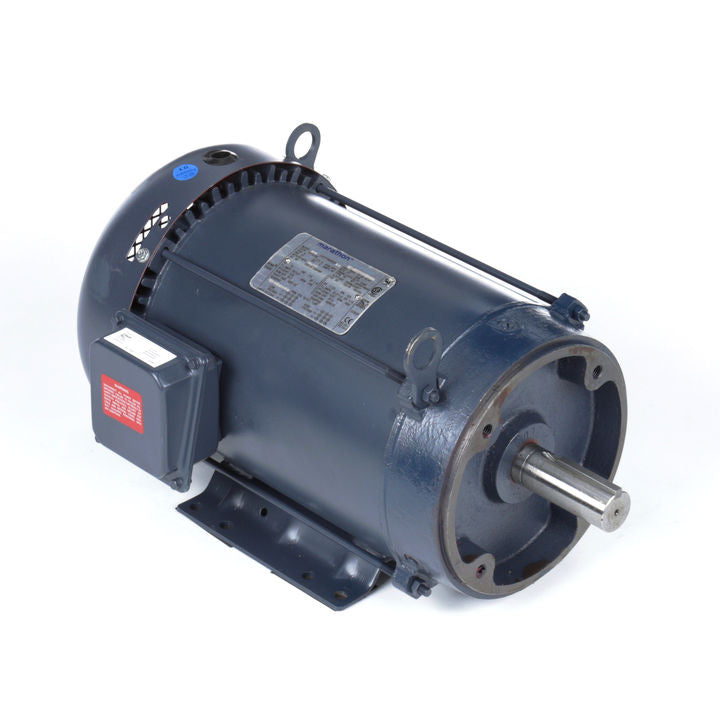

Leeson Electric B199747.00, 20 HP, 1500 RPM, 284TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

B199747.00, 20 HP, 1500 RPM, 284TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:20 Hp
Output KW:18.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:62.0/31.0 A
Speed:1475 rpm
Service Factor:1.15
Phase:3
Efficiency:93.6 %
Power Factor:81.5
Duty:CONTINUOUS
Insulation Class:F7
Design Code:B
KVA Code:G
Frame:284TC
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:V-INS, CONST UL REC
CSA:N
CE:Y
IP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Y START D RUN OR INV
Poles:4
Rotation:REV
Resistance Main:.3657 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:25.71 in
Frame Length:12.59 in
Shaft Diameter:1 7/8 in
Shaft Extension:4.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
