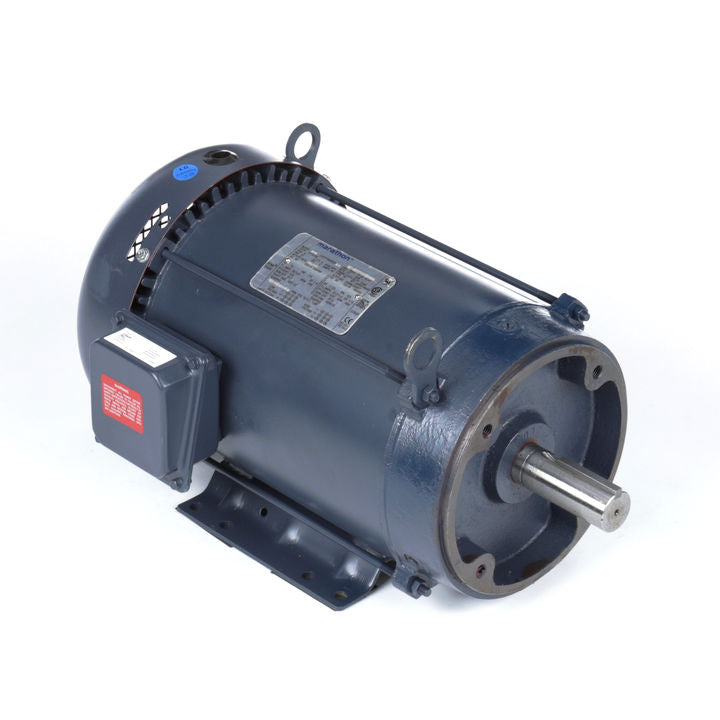

Leeson Electric B199748.00, 25 HP, 3000 RPM, 284TSC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

B199748.00, 25 HP, 3000 RPM, 284TSC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:25 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:230/460 V
Current:71.5/35.5 A
Speed:2960 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:87
Duty:CONTINUOUS
Insulation Class:F7
Design Code:B
KVA Code:F
Frame:284TSC
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6211
Opp Drive End Bearing Size:6211
UL:V-INS, CONST UL REC
CSA:N
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Y START D RUN OR INV
Poles:2
Rotation:REV
Resistance Main:.358 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEELS
haft Type:TS
Overall Length:24.34 in
Frame Length:12.59 in
Shaft Diameter:1 5/8 in
Shaft Extension:3.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
