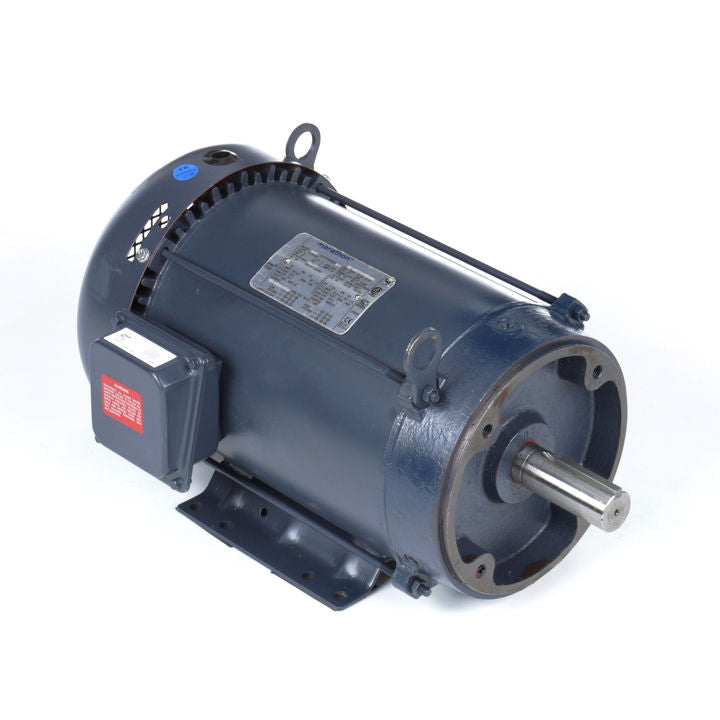

Leeson Electric B199749.00, 25 HP, 1500 RPM, 286TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

B199749.00, 25 HP, 1500 RPM, 286TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:25 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:230/460 V
Current:72.5/36.0 A
Speed:1474 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:83.5
Duty:CONTINUOUS
Insulation Class:F7
Design Code:B
KVA Code:G
Frame:286TC
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Y-(LEESON UL REC)
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Y START D RUN OR INV
Poles:4
Rotation:REV
Resistance Main:.289 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:25.71 in
Frame Length:13.97 in
Shaft Diameter:1 7/8 in
Shaft Extension:4.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
