Baldor Electric EM44352T-4, 350 Hp, 3600 Rpm, 449TS FR, 460 Vac, 3 PH, TEFC, Foot Mounted, General Purpose Motor

EM44352T-4, 350 Hp, 3600 Rpm, 449TS FR, 460 Vac, 3 PH, TEFC, Foot Mounted, General Purpose Motor.

Engineering Data

Output 350.000 hp
Phase 3
Synchronous Speed 3,600 rpm
Frequency 60 Hz
Voltage 460 V
Frame Material Iron

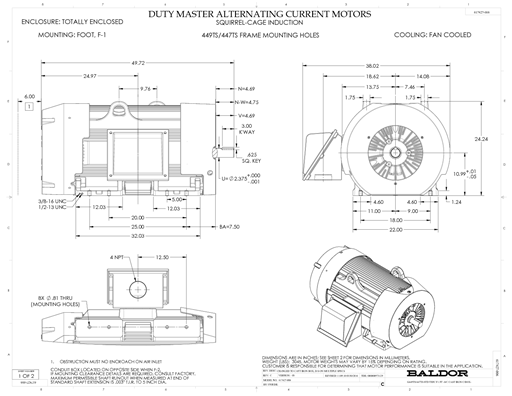

Frame 449TS
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals
CCSA US
CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Current 375.0 A
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2%
Feedback Device No feedback
Heater Indicator No heater
High Voltage Full Load Amps 375.0 A
Insulation Class F
Inverter Code Inverter ready
KVA Code G
Motor Lead Quantity/Wire Size 12 @ 1 AWG
Motor Standards NEMA
Motor Type A44144M
Number of Poles 2
Overall Length 49.47 in
Power Factor 91
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3,570 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Thermal Device - Bearing None
Thermal Device - Winding None
