Industrial Motors

Baldor Electric GC24306 1/20 Hp, 82.7 Rpm, 2416C-BB Fr, 115 Vac, 20:1, 24 Lb-in., 1 Phase Input, Right Angle AC Gearmotor

Baldor Electric GC24306 1/20 Hp, 82.7 Rpm, 2416C-BB Fr, 115 Vac, 20:1, 24 Lb-in., 1 Phase Input, Right Angle AC Gearmotor

$425.00
$425.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Baldor Electric Motors is no longer manufacturing this motor, possible replacement is the following Baldor Electric Motors part# 0490 ,M1125083.00

**Baldor is no longer manufacturing this motor. possible replacement is Bodine Model# 0490 or Leeson Model# M1125083.00**

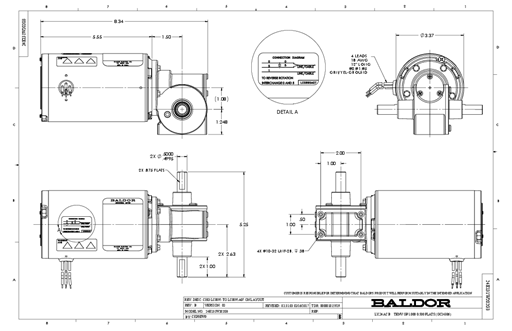

GC24306 1/20 Hp, 82.7 Rpm, 2416C-BB Fr, 115 Vac, 20:1, 24 Lb-in., 1 Phase Input, Right Angle AC Gearmotor Engineering Data Frequency 50.00 Hz 60.00 Hz Gear Ratio20:1 Gear StyleBB Gearhead TypeRIGHT ANGLE Number of Poles4 Output Speed65 rpm 79 rpm Output Torque29.00 in lb Phase1 Speed1,575 rpm 1,300 rpm Voltage115 V BrandBaldor-Reliance Capacitor Size10 Connection DiagramCD1018 Dimensional Drawing Numbers24E131W202G3 Duty RatingCONT Frame MaterialSteel Insulation ClassF KVA Code-

View full details

Attachments
