Industrial Motors

Baldor Electric GC25010 1/8 Hp, 2524S-JK Frame, 74 Rpm, 115 Vac, 22.5:1, 79 Lb-in. 1 Phase Input, Right Angle AC Gearmotor

Baldor Electric GC25010 1/8 Hp, 2524S-JK Frame, 74 Rpm, 115 Vac, 22.5:1, 79 Lb-in. 1 Phase Input, Right Angle AC Gearmotor

$465.80
$465.80
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Baldor Electric Motors is no longer manufacturing this motor, possible replacement is the following Baldor Electric Motors part# 0647

**This motor is no longer available, Possible replacement is Bodine Model# 0647, Bodine Motor only has 1 shaft**

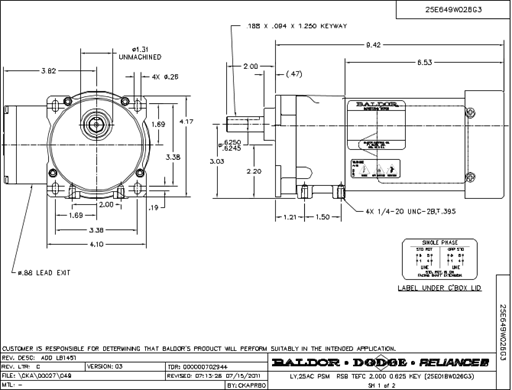

GC25010 1/8 Hp, 2524S-JK Frame, 74 Rpm, 115 Vac, 22.5:1, 79 Lb-in. 1 Phase Input, Right Angle AC Gearmotor Engineering Data Frequency50.00 Hz 60.00 Hz Gear Ratio22.5:1 Gear StyleJK Gearhead TypeRIGHT ANGLE Number of Poles4 Output Speed62 rpm 74 rpm Output Torque79.00 in lb Phase1 Speed1,650 rpm 1,350 rpm Voltage115 V BrandBaldor-Reliance Connection DiagramCD1917 Dimensional Drawing Numbers25E647W026G2 Duty RatingCONT Frame MaterialSteel Insulation ClassF KVA CodeS
