Baldor Electric ZDVSM4115T 50 Hp, 1800 Rpm, 326T Frame, 230/460 Vac, 3 Phase Input, TEFC, Foot Mounted, V*S Master Duty Vector Duty Motor

ZDVSM4115T 50 Hp, 1800 Rpm, 326T Frame, 230/460 Vac, 3 Phase Input, TEFC, Foot Mounted, V*S Master Duty Vector Duty Motor

Engineering Data

Output 50.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60.00 Hz
Voltage 230 V
460 V
Frame Material Iron
Frame 326T
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 116.0 A @ 230 V
58.0 A @ 460 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device Encoder
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 58.0 A
Insulation Class F
Inverter Code Inverter duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2,700 rpm
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 1272M
Number of Poles 4

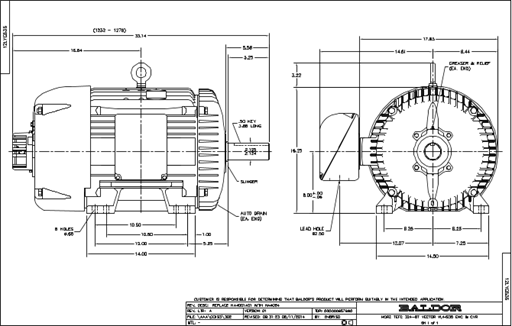

Overall Length 33.14 in
Power Factor 85
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.00
Shaft Diameter 2.125 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1,775 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing NONE (OLD)
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
