Industrial Motors

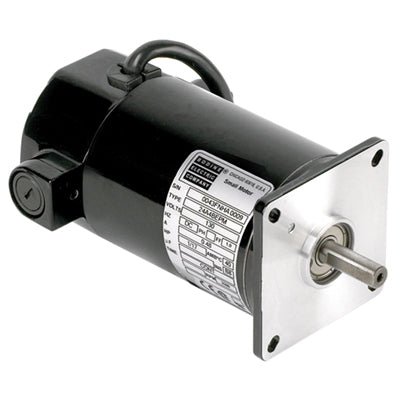

Bodine Electric 0044, 1/17 Hp, 2500 Rpm, 22 Oz-in., 24A4BEPM, 24 Vdc., Foot Mount, No Accessory Shaft, Permanent Magnet DC Gearmotor

Bodine Electric 0044, 1/17 Hp, 2500 Rpm, 22 Oz-in., 24A4BEPM, 24 Vdc., Foot Mount, No Accessory Shaft, Permanent Magnet DC Gearmotor

$313.21
$313.21
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

0044, 1/17 Hp, 2500 Rpm, 22 Oz-in., 24A4BEPM, 24 Vdc., Foot Mount, No Accessory Shaft, Permanent Magnet DC Gearmotor

Specifications

Speed (rpm) 2500
Rated Torque (oz-in) 22
Rated Voltage 24VDC
Current (Amps) 2.6
Motor HP 1/17
KT (oz-in/A) 9.2
KE (V/krpm) 6.8
Winding Resistance (ohms) 2
Winding Inductance (mH) 6.7
Rotor Inertia (oz-in-sec) 0.007
Radial Load (lbs) 25
Length XH (inch) 4.68
Weight (lbs) 3.4
Product Type 24A4BEPM
Accessory Shaft NO
Connection Diagram 07410101
