Industrial Motors

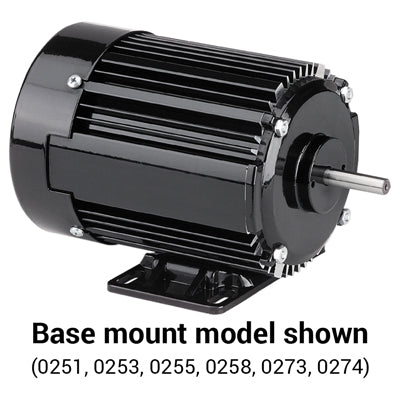

Bodine Electric 0268, 1/5 Hp, 1400/1700 Rpm, 148/119 Oz-in., 42R6BFCI, 230 Vac., Permanent Split Capacitor, Three-Wire Reversible, Non-synchronous, Base Mount

Bodine Electric 0268, 1/5 Hp, 1400/1700 Rpm, 148/119 Oz-in., 42R6BFCI, 230 Vac., Permanent Split Capacitor, Three-Wire Reversible, Non-synchronous, Base Mount

$305.68
$305.68
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

0268, 1/5 Hp, 1400/1700 Rpm, 148/119 Oz-in., 42R6BFCI, 230 Vac., Permanent Split Capacitor, Three-Wire Reversible, Non-synchronous, Base Mount

SPECIFICATIONS

Speed (rpm) 1400/1700
Rated Torque (oz-in) 144/119
Motor HP 1/5
Voltage 230
Hz 50/60
Phases 1
Amps 1.1 / 1.2
Radial Load (lbs) 50
Length XH (inch) 7.2
Weight (lbs) 13
Connection Diagram 07410019
Capacitor Part Number 49401148
Product Type 42R6BFCI
Mounting Base NEMA C
HPDecimal 0.20
