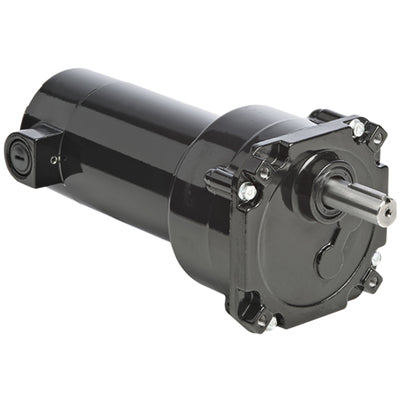

Bodine Electric 1163, 24A4BEPM-Z4, 1/32 HP, 9.6 RPM, 100 Lb-in, 44:1, 180 Vdc, Series Parallel Shaft DC Gearmotor

Bodine Electric 1163, 24A4BEPM-Z4, 1/32 HP, 9.6 RPM, 100 Lb-in, 44:1, 180 Vdc, Series Parallel Shaft DC Gearmotor

$603.74
$603.74
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1163, 24A4BEPM-Z4, 1/32 HP, 9.6 RPM, 100 Lb-in, 44:1, 180 Vdc, Series Parallel Shaft DC Gearmotor

SPECIFICATIONS

Speed (rpm) 9.6
Rated Torque (Nm) 11.3
Rated Torque (lb-in) 100
Peak Torque (Nm) 13
Peak Torque (lb-in) 115
Power (Watts) 23
Power (HP) 1/32
Volts 180
Amps 0.18
Gear Ratio 180
Radial Load (N) 555
Radial Load (lbs) 125
Length XH (mm) 199
Length XH (inch) 7.82
Weight (kg) 2.3
Weight (lbs) 5
Connection Diagram 07410097
Product Type 24A4BEPM-Z4
HPDecimal 0.0312
