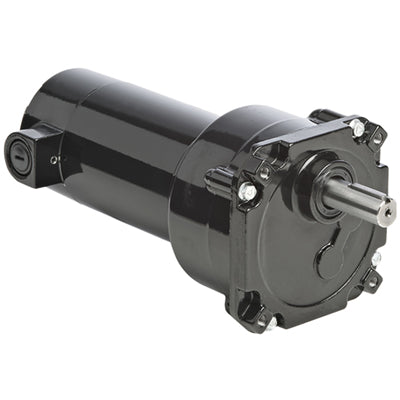

Bodine Electric 1235, 24A4BEPM-Z4, 1/19 HP, 28 RPM, 77 Lb-in, 90:1, 180 Vdc, Parallel Shaft DC Gearmotor

Bodine Electric 1235, 24A4BEPM-Z4, 1/19 HP, 28 RPM, 77 Lb-in, 90:1, 180 Vdc, Parallel Shaft DC Gearmotor

$520.59
$520.59
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1235, 24A4BEPM-Z4, 1/19 HP, 28 RPM, 77 Lb-in, 90:1, 180 Vdc, Parallel Shaft DC Gearmotor

SPECIFICATIONS

Speed (rpm) 28
Rated Torque (lb-in) 81
Rated Voltage (VDC) 180
Current (Amps) 0.30
Peak Torque (lb-in) 126
Power (HP) 1/19
Form Factor (FF) 1.5
Gear Ratio 90
Radial Load (lbs) 193
Length XH (inch) 7.795
Weight (lbs) 5
Product Type 24A4BEPM-Z4
Accessory Shaft NO
HPDecimal 0.05
Connection Diagram 07410101
