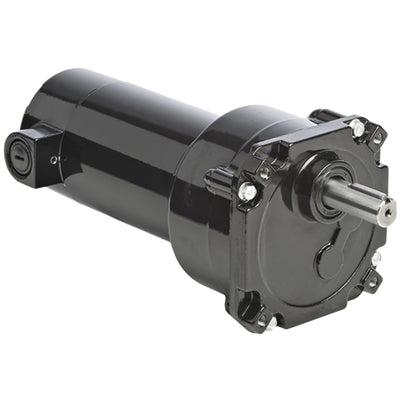

Bodine Electric 1245, 24A4BEPM-Z4, 1/20 HP, 14 RPM, 120 Lb-in, 180:1, 90 Vdc, Parallel Shaft DC Gearmotor

Bodine Electric 1245, 24A4BEPM-Z4, 1/20 HP, 14 RPM, 120 Lb-in, 180:1, 90 Vdc, Parallel Shaft DC Gearmotor

$520.59
$520.59
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1245, 24A4BEPM-Z4, 1/20 HP, 14 RPM, 120 Lb-in, 180:1, 90 Vdc, Parallel Shaft DC Gearmotor.

SPECIFICATIONS

Speed (rpm) 14
Rated Torque (lb-in) 120
Rated Voltage (VDC) 90
Current (Amps) 0.58
Peak Torque (lb-in) 139
Power (HP) 1/20
Form Factor (FF) 1.6
Gear Ratio 180
Radial Load (lbs) 166
Length XH (inch) 7.795
Weight (lbs) 5
Product Type 24A4BEPM-Z4
Accessory Shaft NO
HPDecimal 0.05
Connection Diagram 07410101
