Industrial Motors

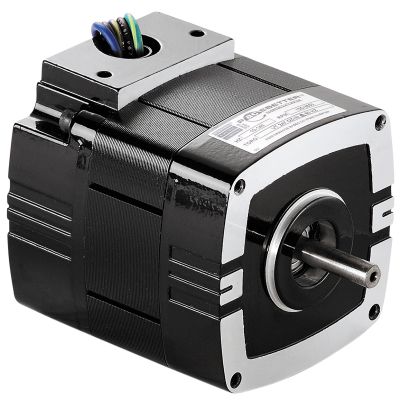

Bodine Electric 2200, 1/25 Hp, 1700 Rpm, 24 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

Bodine Electric 2200, 1/25 Hp, 1700 Rpm, 24 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

$328.35
$328.35
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2200, 1/25 Hp, 1700 Rpm, 24 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

Specifications

Speed (rpm) 1700
Fixed Speed Torque 24 Oz-in
Motor Output Power (hp) 1/25
Voltage (AC) 230
Current (amps) 0.38
Rated Frequency (Hz) 60
Variable Speed (rpm) 220-3400
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 20
SOA Torque At 60Hz 56
SOA Torque At Max Hz 27
Length XH (inches) 3.7
Weight (lbs) 4.5
Connection Diagram 07410007
Motor Type 30R2BEPP
HPDecimal 0.04
View full details

Attachments
