Industrial Motors

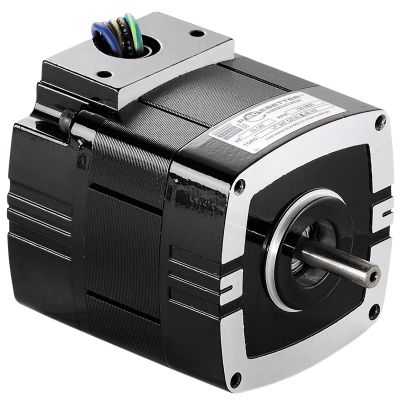

Bodine Electric 2201, 1/17 Hp, 1700 Rpm, 35 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

Bodine Electric 2201, 1/17 Hp, 1700 Rpm, 35 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

$340.46
$340.46
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2201, 1/17 Hp, 1700 Rpm, 35 Oz-in., 30R4BEPP. 230 Vac, 3 PH, Variable Speed Inverter Duty

Specifications

Speed (rpm) 1700
Fixed Speed Torque 35 Oz-in
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Variable Speed (rpm) 133-3240
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 45
SOA Torque At 60Hz 66
SOA Torque At Max Hz 35
Length XH (inches) 4.2
Weight (lbs) 6.2
Connection Diagram 07410007
Motor Type 30R4BEPP
HPDecimal 0.0588
